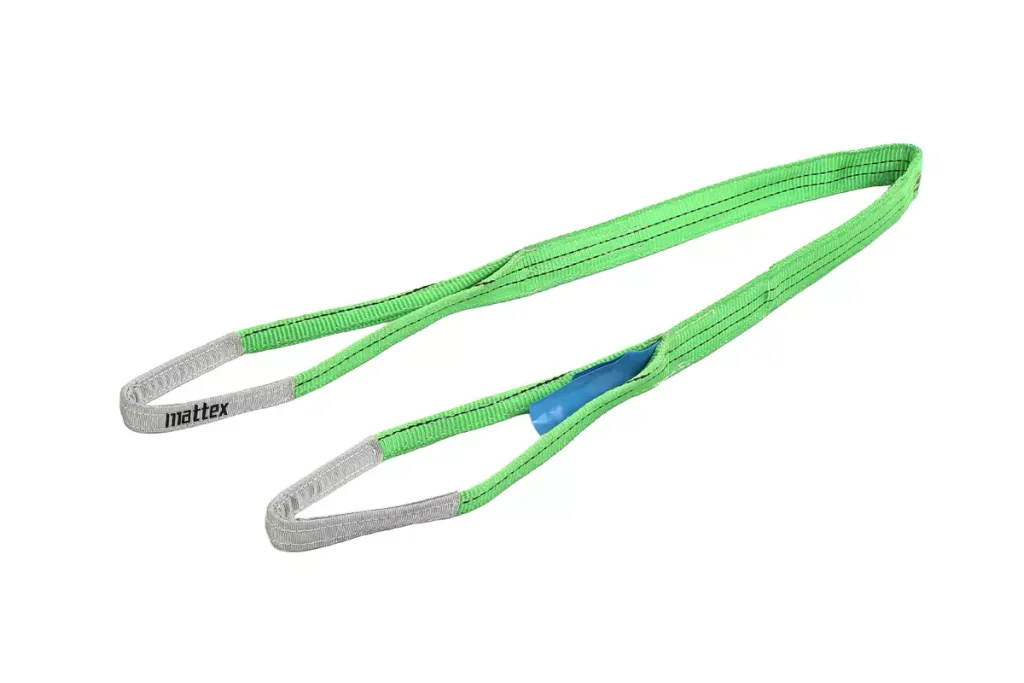

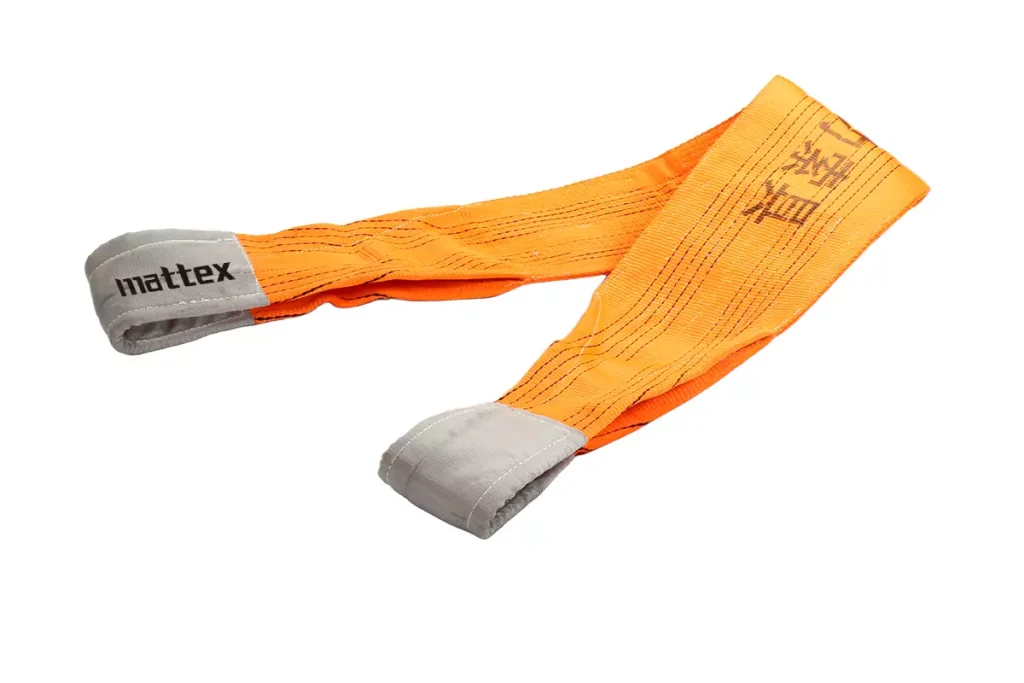

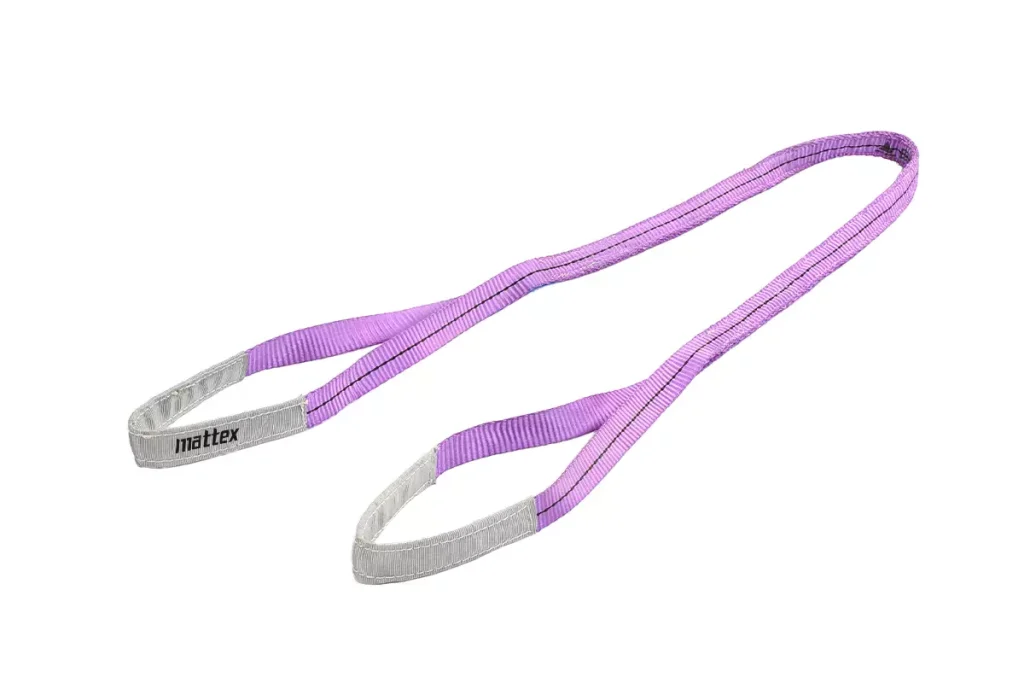

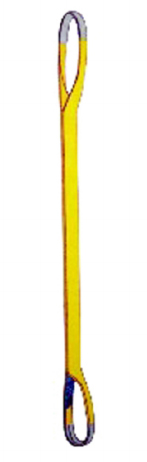

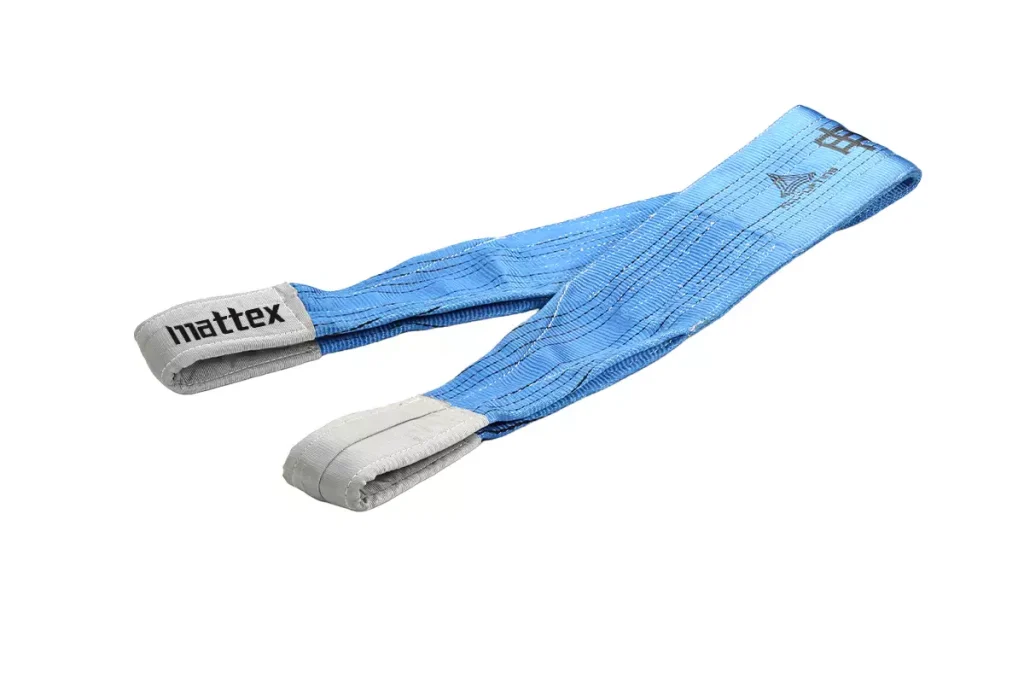

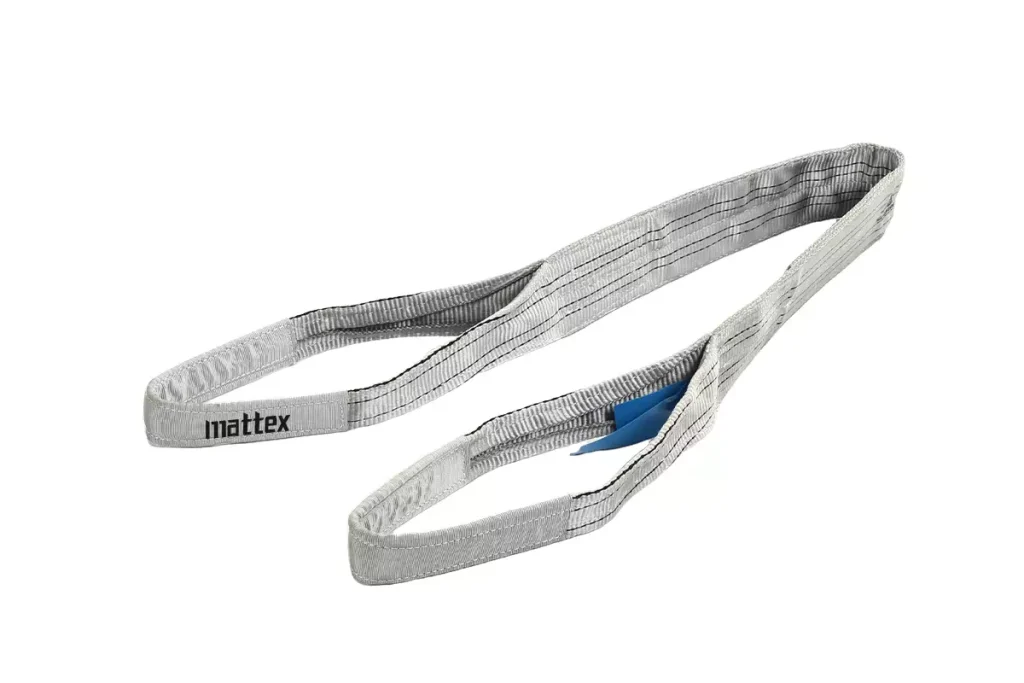

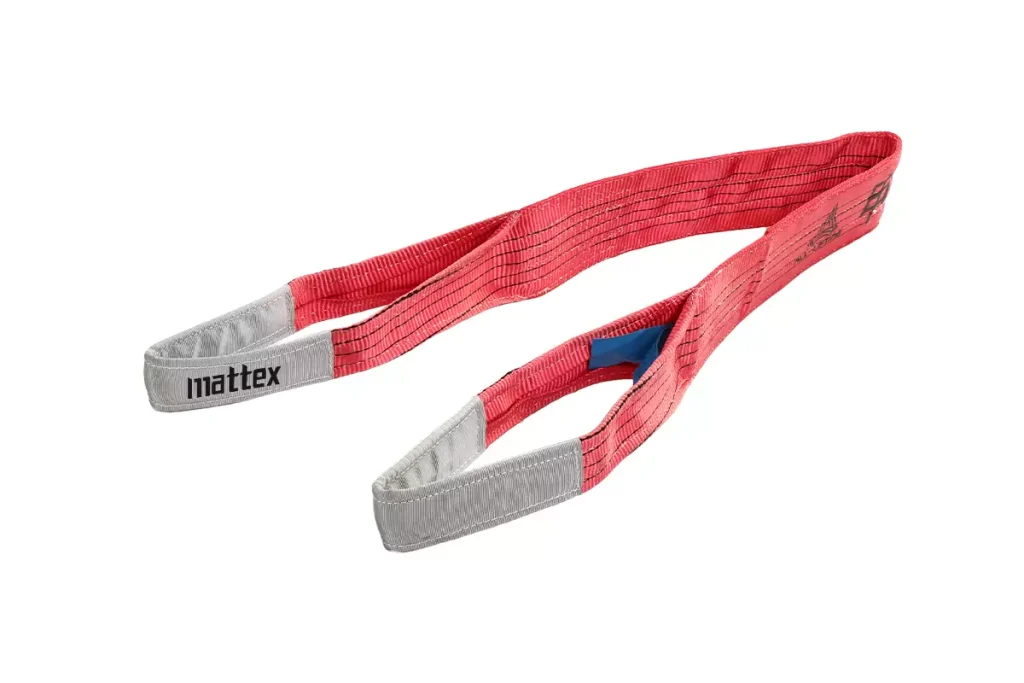

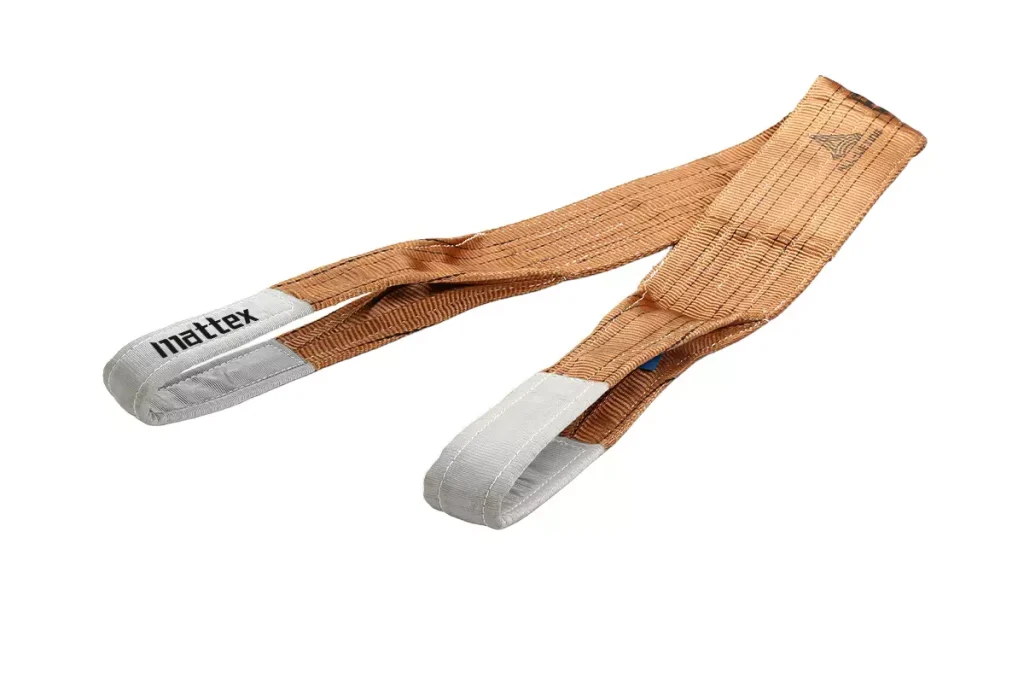

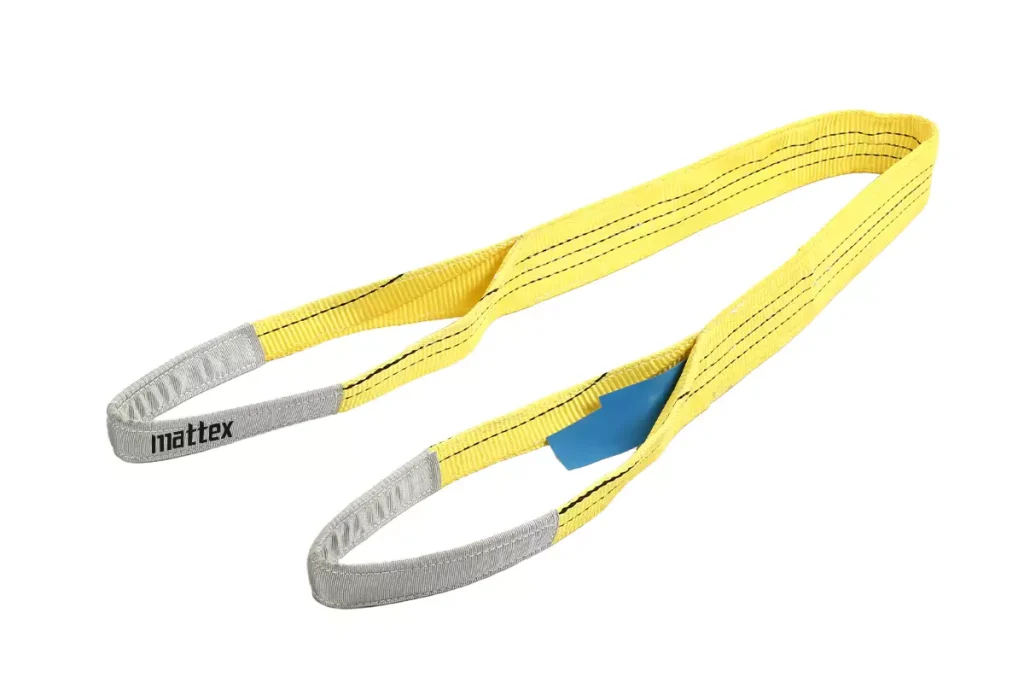

Duplex Eye-Eye Flat Webbing Sling
- 100%high tenacity polyester material
- Single,double,three,four ply
- With reinforced lifting eyes
- Low enlongation
- Length avaiable:1m to 12m
- Safety factor: 5:1, 6:1, 7:1, 8:1
- According to EN1492-1:2000
Specifications
| WLL | 5:1 | 6:1 (SO Standard) | 7:1 (Duroean Standard) | 8:1 (AS/NZS Standard) | |||||||
| Belt Width | Breaking Load | Belt Width | Breaking Load | Belt Width | Breaking Load | Belt Width | Breaking Load | ||||
| ton | mm | ton | mm | ton | mm | ton | mm | ton | |||
| 1 | 25 | 5 | 25/38 | 6 | 30/50 | 7 | 50 | 8 | |||
| 2 | 50 | 10 | 50 | 12 | 60 | 14 | 65 | 16 | |||
| 3 | 75 | 15 | 75 | 18 | 90 | 21 | 95 | 24 | |||
| 4 | 100 | 20 | 100 | 24 | 120 | 28 | 120 | 32 | |||
| 5 | 125 | 25 | 100/125 | 30 | 150 | 35 | 150 | 40 | |||
| 6 | 150 | 30 | 100/150 | 36 | 180 | 42 | 180 | 48 | |||
| 8 | 200 | 40 | 100/200 | 48 | 240 | 56 | 240 | 64 | |||
| 10 | 250 | 50 | 150/250 | 60 | 300 | 70 | 300 | 80 | |||
 | Webbing width (mm) | Colourcoded according to EN 1492-1 | Working Load Limit with 1 webbing sling | Working Load Limit with 2 webbing sling | |||||||
| Straight life | Choked life | β | Straight life up to 45° | Choked life up to 45° | Straight life 40°-60° | Choked life 45°-60° | |||||
| 0°-7° | 7°-45° | 45°-60° | |||||||||
 |  |  |  |  |  |  |  |  | |||
| 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 1.4 | 1.12 | 1.0 | 0.8 | |||
| 30/50 | WLL 1T | 1.000 | 800 | 2.000 | 1.400 | 1.000 | 1.400 | 1.120 | 1.000 | 800 | |
| 60/60 | WLL2T | 2.000 | 1.600 | 4.000 | 2.800 | 2.000 | 2.800 | 2.240 | 2.000 | 1.600 | |
| 90/75 | WLL3T | 3.000 | 2.400 | 6.000 | 4.200 | 3.000 | 4.200 | 3.360 | 3.000 | 2.400 | |
| 120/100 | WLL4T | 4.000 | 3.200 | 8.000 | 5.600 | 4.000 | 5.600 | 4.480 | 4.000 | 3.200 | |
| 140/125 | WLL5T | 5.000 | 4.000 | 10.000 | 7.000 | 5.000 | 7.000 | 5.600 | 5.000 | 4.000 | |
| 180/150 | WLL6T | 6.000 | 4.800 | 12.000 | 8.400 | 6.000 | 8.400 | 6.720 | 6.000 | 4.800 | |
| 240/200 | WLL8T | 8.000 | 6.400 | 16.000 | 11.200 | 8.000 | 11.200 | 8.960 | 8.000 | 6.400 | |
| 300/250 | WLL10T | 10.000 | 8.000 | 20.000 | 14.000 | 10.000 | 14.000 | 11.200 | 10.000 | 8.000 | |
