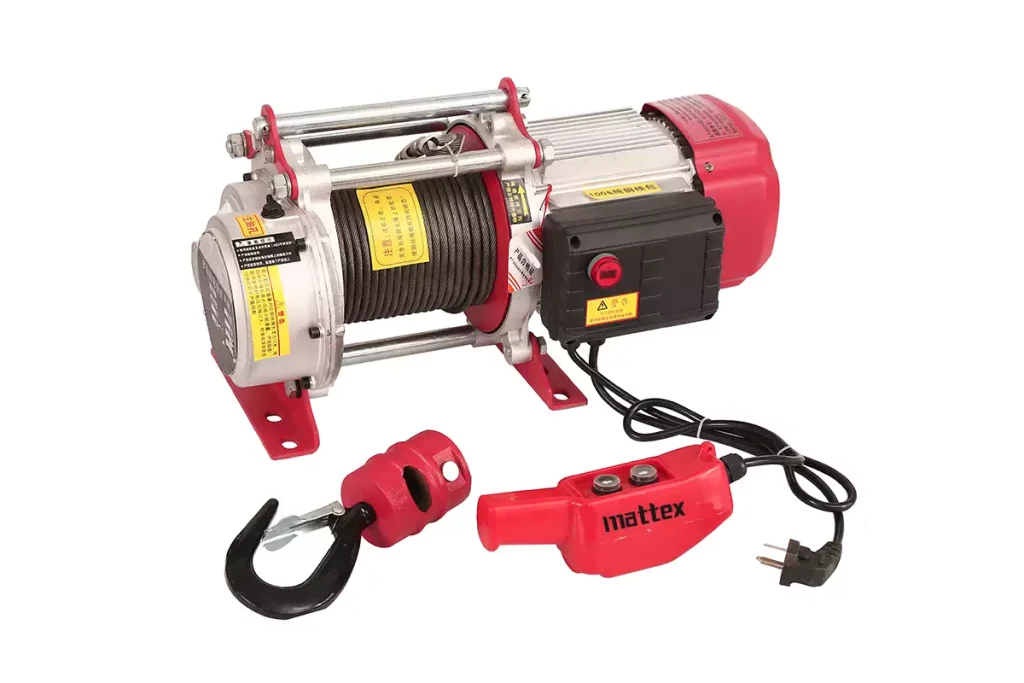

VFE Electric Winch

Share to

Features

Permanent magnet frequency conversion technology assures smoothly lifting with soft start, and intelligent integrated control appliances save more than 45% energy, 4V low voltage controlling is safe and reliable, and there is no fear of electric shock
Fast speed and high efficiency, with optional overload thermal protection for safety and durability, suitable for different scenarios
Small press switch, easy and laborsaving operation, optional with wireless remote control
Dual safety braking device, which instantly slows down the motor when power is cut off and applies mechanical braking
Single 100V-240V power supply, customizable for DC12V, 18V, 24V, 36V, 48V
Inverse prevent device: machine has the function of preventing reverse winding, and will stop automatically when reverse winding occurs.
Hoist occupies small volume, lightweight, move easily.
The outermost layer of the hoisting rope is the lightest lifting capacity, but fastest in speed
Using triangle-hanging wheel with double wire will increase lifting capacity by 85%, but lifting speed half.

Model	Lifting Capacity(kg)	Permanent magnet inverter motor(Kw)	Lifting speed (m/min)		Power supply	Lifing height(m)	Wire rope (mmxm)	Power cable length(m)	Control handle cable length(m)	N.W(kg)	G.W(kg)	Package size(cm)
			Low	High
VFE170	170	1.0	11	22	1Phase, 110V/220V, 50Hz/6OHz	29	5×30	1.5	2.5	16	18	45×30×25
VFE230	230	1.0	9	18		29				16	18
VFE340	340	1.4	7	14		29				16	18
VFE490	490	1.8	8	15		20	6×21			16	18
