Feature

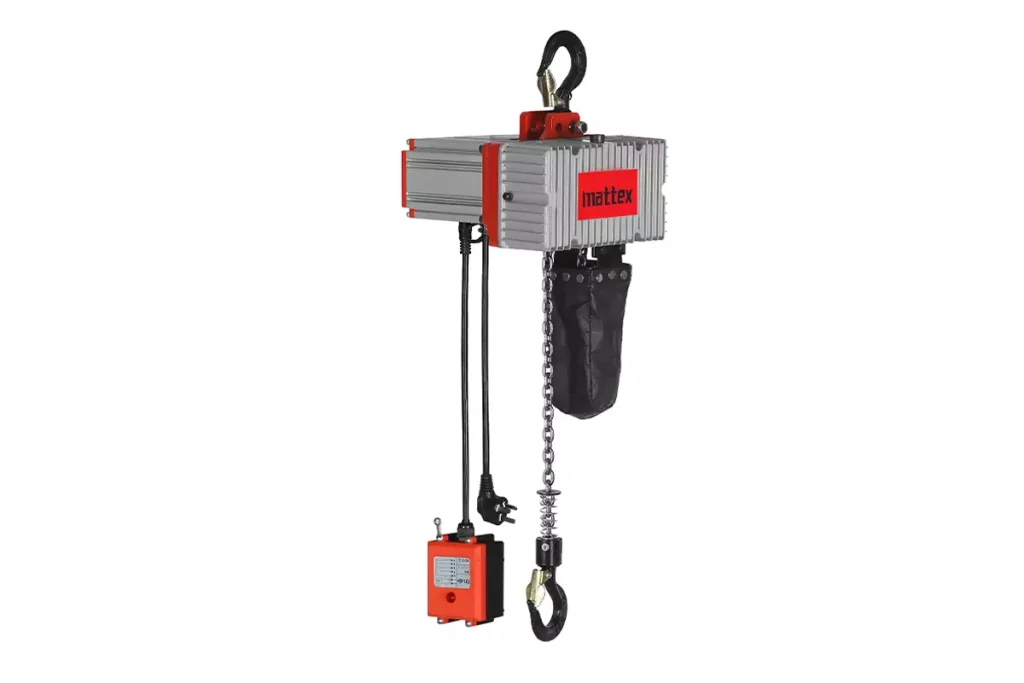

- The chain-type electric hoist with the shortest travel distance for the machine body.
- It uses super strong and wear-resistant alloy steel copper chains, with a safety factor more than six times higher.
- The powerful brake is accurate and safe, with a simple main structure, easy to disassemble and install, and an extremely low failure rate.
- The hook head can rotate 360° and is equipped with a safety stopper to prevent detachment.
Specification
| Model | Lifting capacity(kg) | Variable frequency motor power(KW) | Lifting Speed(m/min) | Lifting height (m) | Chain(mm) | Voltage(V) | Battery capacity | N.W./G.W. (kg) | Package size(cm) |
| ZH250 | 250 | 0.8 | 3.5/10 | 3 | 4×12 | 220V | 9/10 | 42x30x27 | |
| ZH500 | 500 | 1.7/5 | 4×12 double chains | 220V | 11/12 | ||||

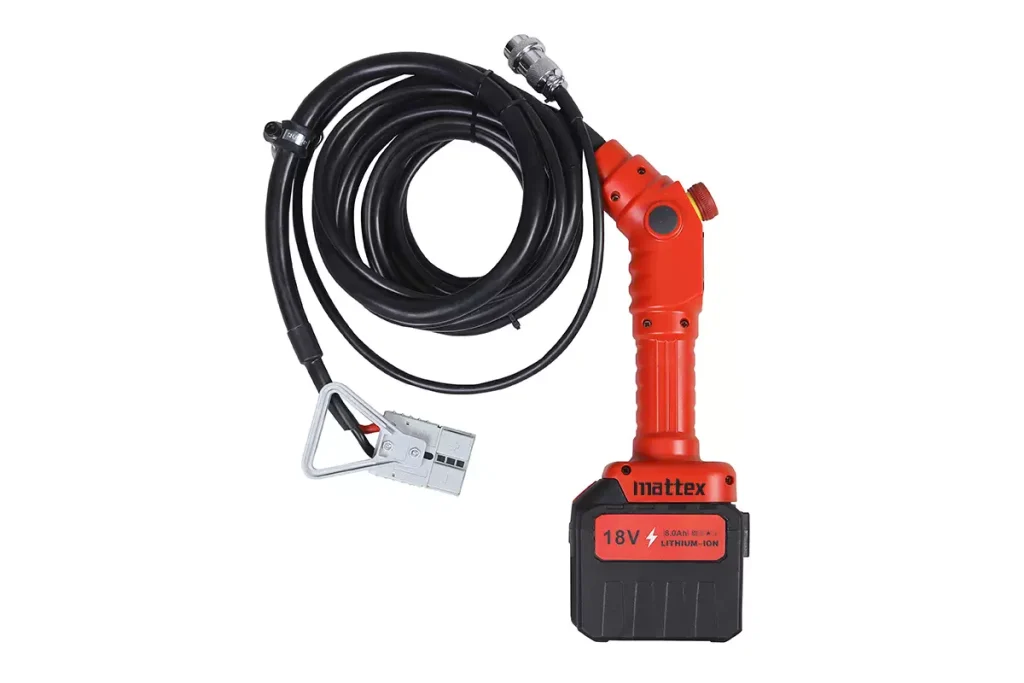

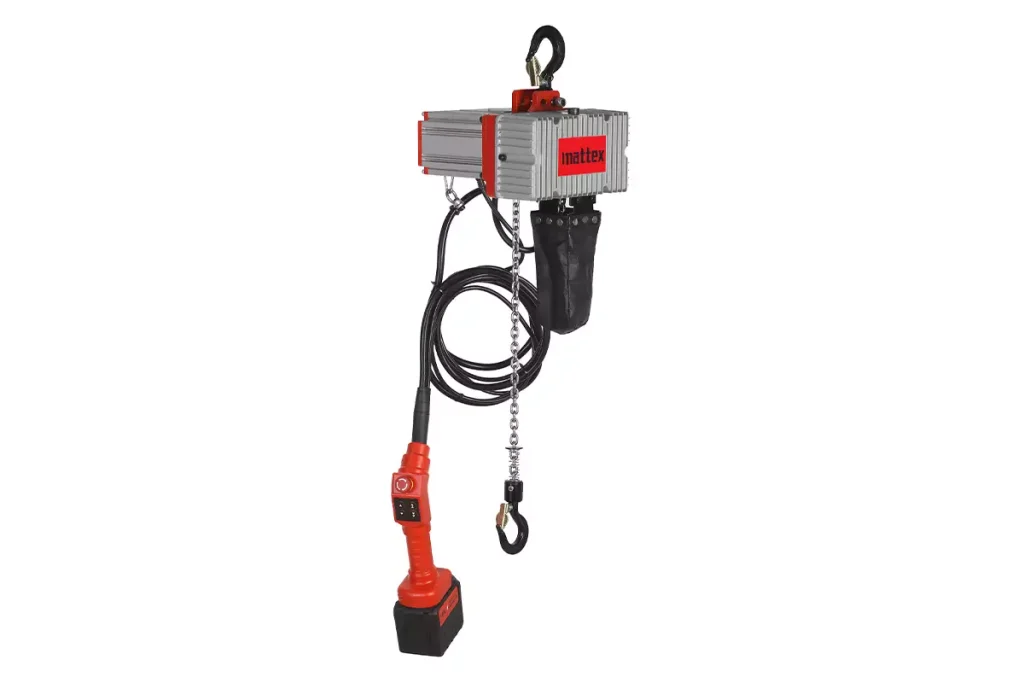

| ZH250 With Lithium battery | 250 | 3.5/10 | 4×12 | 18V | 18V 4ah | 10/11.5 | 42x40x27 | ||
| ZH500 With Lithium battery | 500 | 1.7/5 | 4×12 double chains | 18V | 11.5/13 |
Recommend Products
Electric Wire Rope Hoist
Cap.:400kg/600kg
Voltage:220V/380V
Voltage:220V/380V

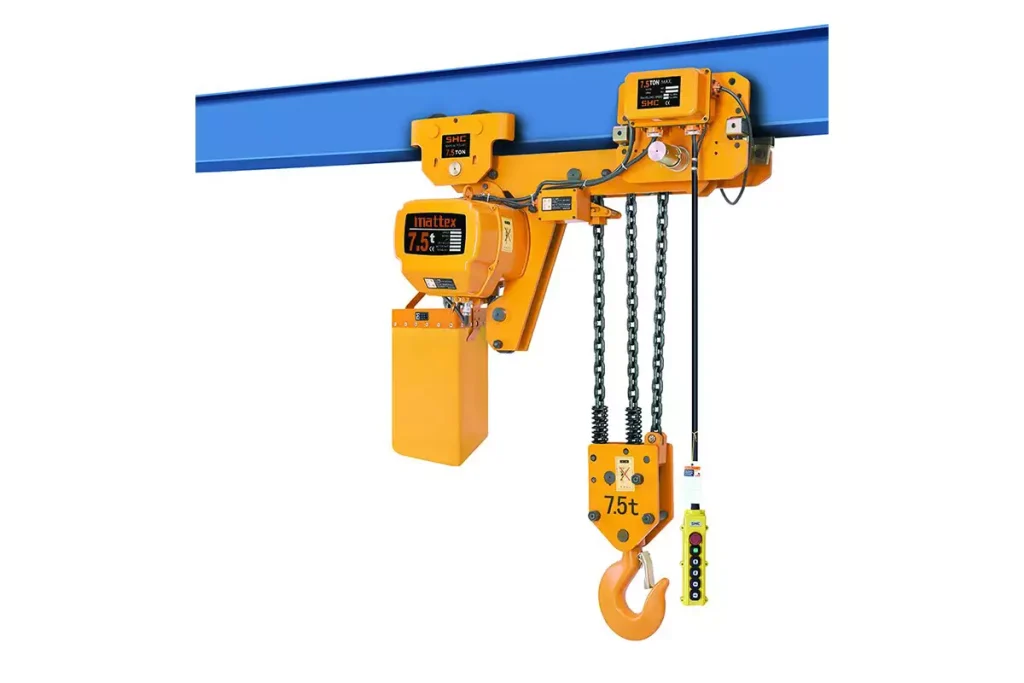

STL Double Speed Type (Low Clearance Type)
Cap.:0.5T-5T
Low Clearance Type
Low Clearance Type
Dust-free Clean Type Electric Chain Hoist
Dust-free Clean Type
STL Double Speed Type (Moving Type)
Cap.:0.25T-5T
Double speed
Double speed
Electric&Manual Trolley
Cap.:1t-10t
Electric/Manual Trolley
Electric/Manual Trolley

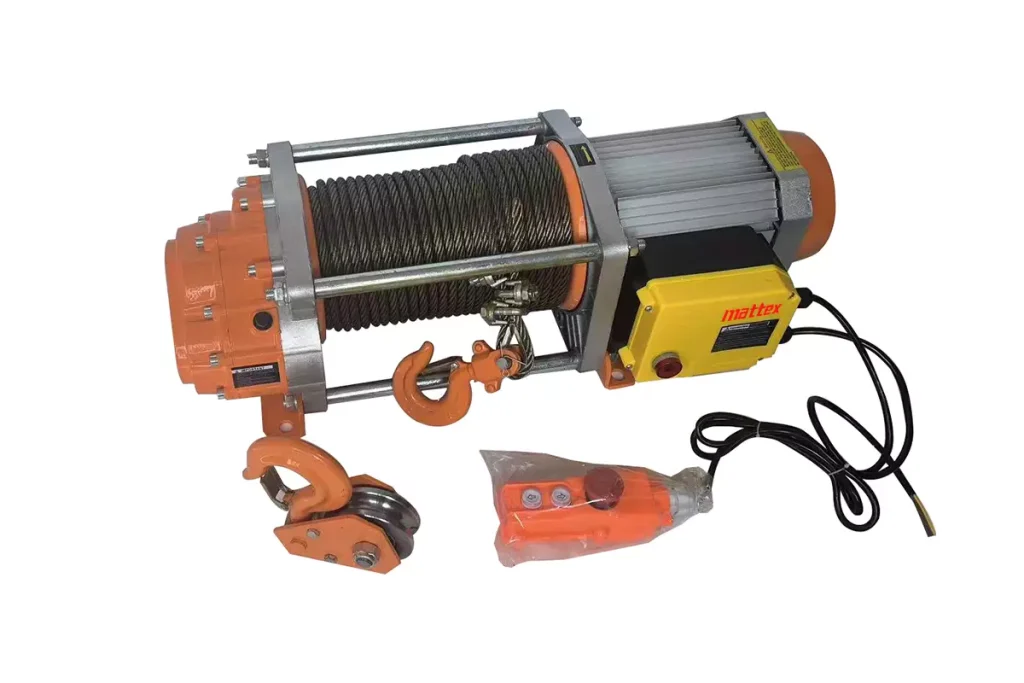

VFE Electric Winch
