STL Double Speed Type (Moving Type)

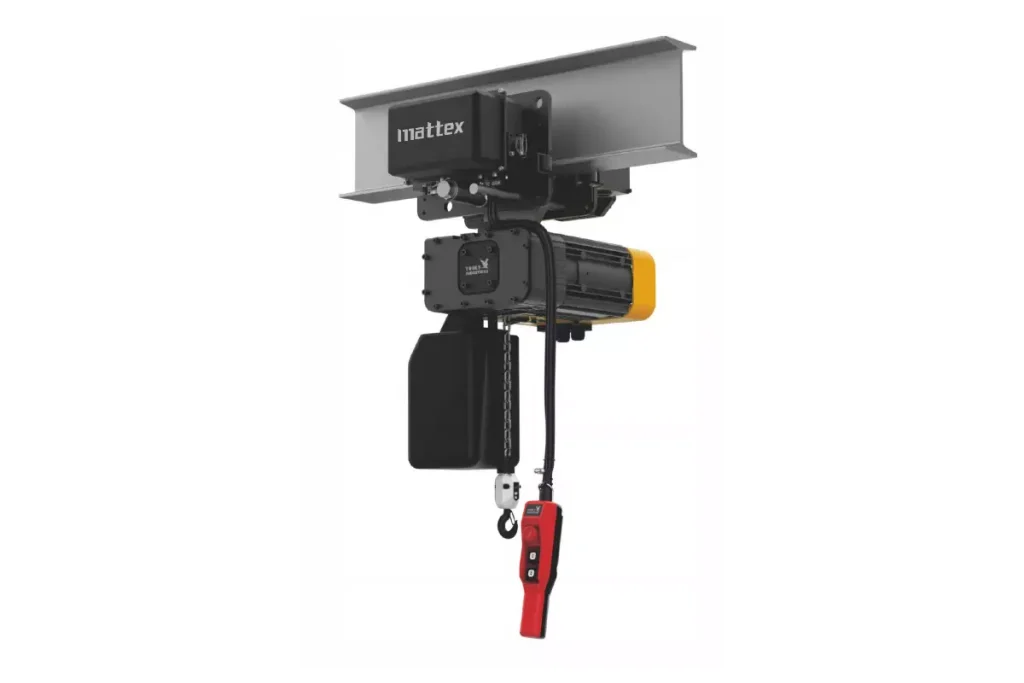

STL Double Speed Type (Electric trolley type)

Electric trolley mounting :
The standard electric trolley adopts double speed, speed is 5/20 m/min. lf needed, the single speed trolley is also optional. The trolley wallboard is equpped with block protection device to avoid the collision of wheel and rail when the trolley drives at limit position of both ends.Besides, the wallboard is equipped with the horizontal guide wheel device to make moving more stable, reduce the abrasion of wheel and rail,and extend the service life.

• A wide product range,lifting load 0.125T-6.3T, different configurations are available
• The chain guide seat, hook, lifting board and other interfaces for different applications
• New hanging structure design is convenient for inspection and maintenance of loadsheave
• The shell is made of high strength aluminum alloy, light weight and small volume
• Modular desian, production, installation, simple and fast maintenance

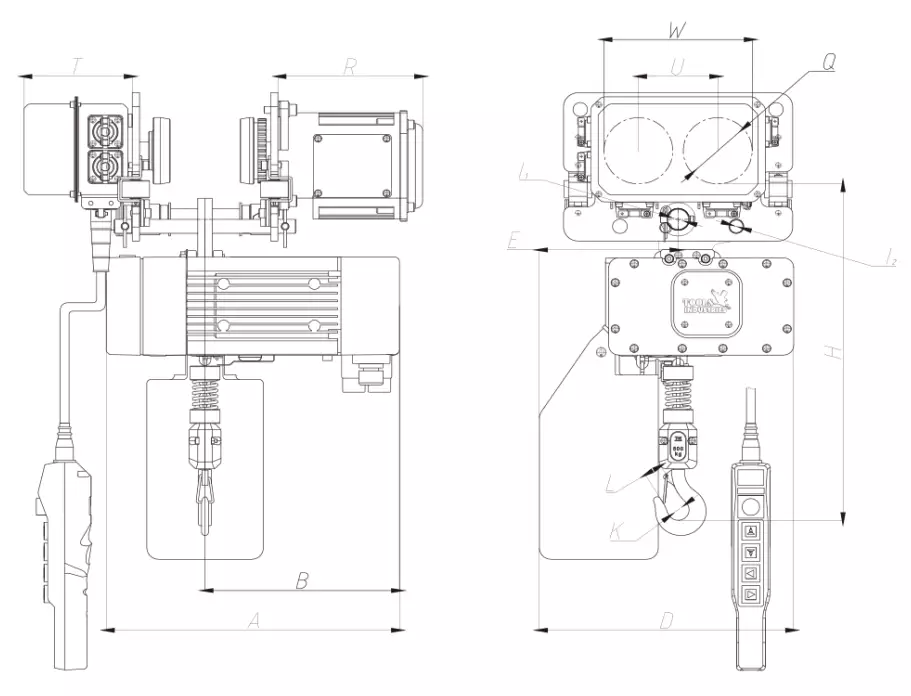

Model	H	A	B	D	E	I₁	I₂	K	L	W	U	R	T	Q
STL0.5-01DE	480	400	267	349	191	31	20	30	24	204	109	200	149	95
STL01-01DE	550	500	316	397	210	31	20	37	26	204	109	200	149	95
STL01-02DE	570	400	267	349	191	31	20	37	24	204	109	200	149	95
STL1.6-01DE	640	525	315	440	285	36	20	45	33.5	237	127	200	149	110
STL02-02DE	640	500	315	400	230	36	20	49	39	237	127	200	149	110
STL2.5-01DE	650	525	315	440	285	43	20	45	33	265	140	200	149	125
STL03-02DE	795	525	315	460	305	43	20	56	43	265	140	200	149	125
STL05-02DE	830	525	315	460	305	43	31	56	43	282	142	200	149	140

Model	Rated capacity(ton)	Lifting speed(m/min)	Motor power(kw)	Rotate speed	Motor insulation grade	Working voltage	Control voltage	No.of load chain	Chain size(mm)
STL0.25-01DE	0.25t	8/2	0.8/0.2	2880/720 r/min	F grade	3-Phase 380V 50Hz	24V/36V/ 48V	1	5×15
STL0.5-01DE	0.5t	8/2	0.8/0.2					1	5×15
STL01-01DE	1t	8/2	1.6/0.4					1	7×21
STL01-02DE	1t	4/1	0.8/0.2					2	5×15
STL1.6-01DE	1.6t	8/2	3.6/0.9					1	9×27
STL02-02DE	2t	4/1	1.6/0.4					2	7×21
STL2.5-01DE	2.5t	8/2	3.6/0.9					1	11×33
STL03-02DE	3.2t	4/1	3.6/0.9					2	9×27
STL05-02DE	5t	4/1	3.6/0.9					2	11×33

Trolley motor (single speed)						Trolley motor (variable frequency)
Power(Kw)	Rotate speed(r/min)	Moving speed(m/min)	Turning radius(m)	I-beam width(mm)	Wheel diameter(mm)	Power (Kw)	Rotate speed(r/min)	Moving speed(m/min)	Turning radius(m)	I-beam width(mm)	Wheel diameter(mm)
0.4	1440	11 or 19	0.7	75-178	95	0.4	1440	2-11 or 3- 19	0.7	75-178	95
0.4			0.7	75-178	95	0.4			0.7	75-178	95
0.4			0.8	75-178	95	0.4			0.8	75-178	95
0.4			0.8	82-178	110	0.4			0.8	82-178	110
0.4			0.9	82-178	110	0.4			0.9	82-178	110
0.4			0.9	82-178	110	0.4			0.9	82-178	110
0.4			1	100-178	125	0.4			1	100-178	125
0.75			1	100-178	125	0.75			1	100-178	125
0.75			1.8	112-178	140	0.75			1.8	112-178	140

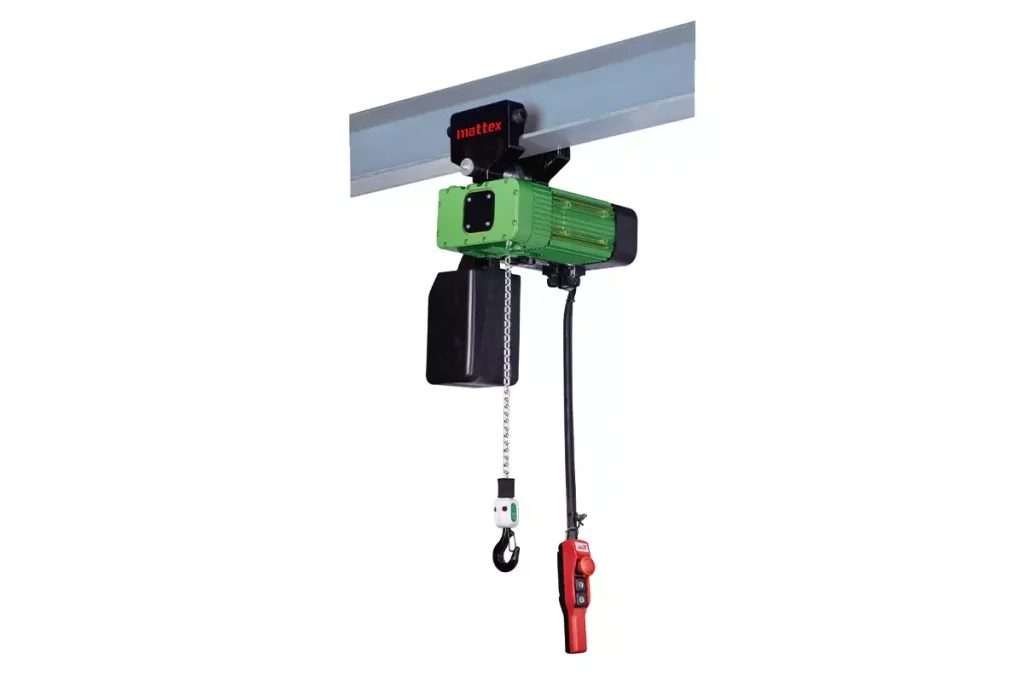

STL Double Speed Type (Manual trolley type)

Mounting method:
The standard manual trolley type adopts lifting board connection, also can adopt hook type connection. On the smooth moving trolley, if need to run more smoothly, a rigid connection can be used, so that the lifting load won’t shake, the whole machine is more stable, and not affect the headroom size of the whole machine.

• A wide product range,lifting load 0.125T-6.3T, different configurationsare available
• The chain quide seat, hook, lifting board and other interfaces for different applications
• New hanging structure design is convenient for inspection and maintenance ofload sheave
• The shell is made of high strength aluminum alloy, light weight and small volume
• The modular design is adopted for simple and rapid production, mounting and maintenance

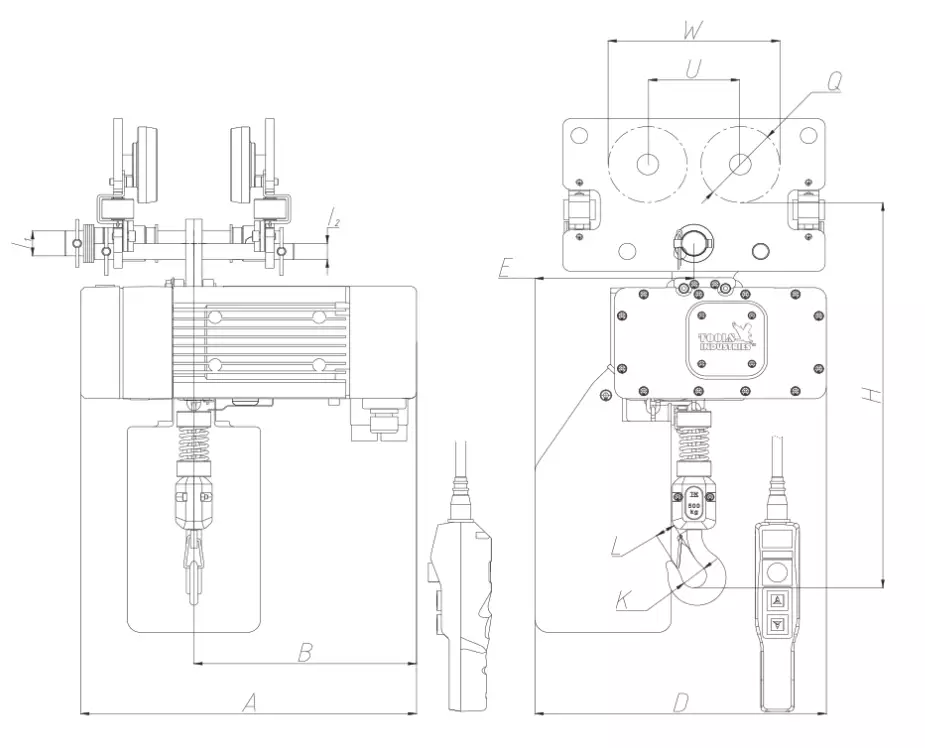

Model	H	A	B	D	E	I₁	I₂	K	L	W	U	R	T	Q
STL0.5-01DM	480	400	267	349	191	31	20	30	24	204	109	200	149	95
STL01-01DM	550	500	316	397	210	31	20	37	26	204	109	200	149	95
STL01-02DM	570	400	267	349	191	31	20	37	24	204	109	200	149	95
STL1.6-01DM	640	525	315	440	285	36	20	45	33.5	237	127	200	149	110
STL02-02DM	640	500	315	400	230	36	20	49	39	237	127	200	149	110
STL2.5-01DM	650	525	315	440	285	43	20	45	33	265	140	200	149	125
STL03-02DM	795	525	315	460	305	43	20	56	43	265	140	200	149	125
STL05-02DM	830	525	315	460	305	43	31	56	43	282	142	200	149	140

Specification Model	Rated capacity (ton)	Motor power (kw)	Lifting speed (m/min)	Rotate speed	Motor insulation grade	Running speed(m/min)	Working voltage	Control voltage	No.of load chain	Chain size (mm)
STL0.25-01DM	0.25t	8/2	0.8/0.2	2880/720 r/min	F grade	11 Or 19	3-Phase 380V 50HZ	24V/36V/48V	1	5×15
STL0.5-01DM	0.5t	8/2	0.8/0.2						1	5×15
STL01-01DM	1t	8/2	1.6/0.4						1	7×21
STL01-02DM	1t	4/1	0.8/0.2						2	5×15
STL1.6-01DM	1.6t	8/2	3.6/0.9						1	9×27
STL02-02DM	2t	4/1	1.6/0.4						2	7×21
STL2.5-01DM	2.5t	8/2	3.6/0.9						1	11×33
STL03-02DM	3.2t	4/1	3.6/0.9						2	9×27
STL05-02DM	5t	4/1	3.6/0.9						2	11×33
