Features
- Permanent magnet frequency conversion technology, smooth operation, soft start, intelligent integrated control of electrical appliances, energy saving of over 45%, Electric control with 4V low voltage is safe and reliable, without fear of electric shock.
- Overload protection is safe and durable, with arbitrary switching between high and low speeds, suitable for different scenarios.
- Optional – precise travel counting and real-time monitoring, wireless control+wireless communication.
- Dual safety braking device, which instantly slows down the motor when power is cut off, and applies mechanical braking.
- Separate design of power cord and control cord, easy to install.
- Small press switch, easy and laborsaving operation.
- Single 100V-240V power supply can be customized for DC12V, 18V, 24V, 36V, 48V.
Specification
| Model | Capacity (kg) | Variable Frequency Motor power(KW) | Lifting speed (m/min) | Power supply | I-beam width(mm) | Power cable length(m) | Control handle cable length(m) | N.W(kg) | G.W(kg) | Package size(cm) | |
| Low | High | ||||||||||
| VFT1000 | 1000 | 0.4 | 10 | 20 | 1Phase, 110V/220V 50Hz/60Hz | 75-150 | 1 | 3 | 13 | 14 | 43x30x18 |
| VFT2000 | 2000 | 10 | 20 | 17 | 18 | ||||||

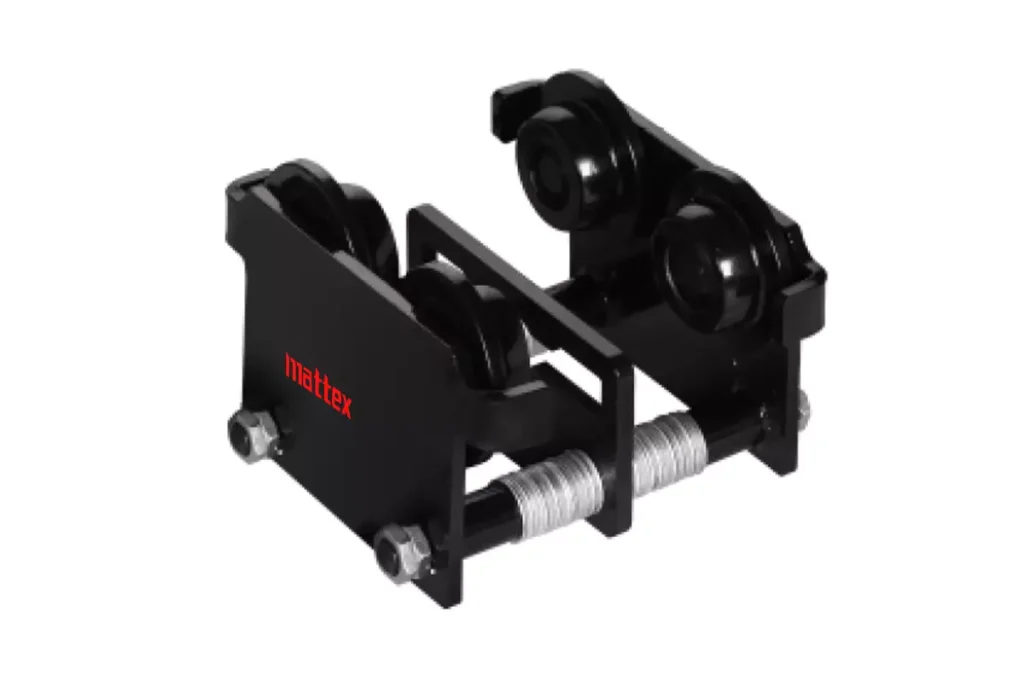

| Model | Capacity(kg) | I-beam width(mm) | N.W(kg) | G.W(kg) | Package size(cm) |
| GCT1000 | 1000 | 75-150 | 9.5 | 10 | 27×26×18 |
| GCT2000 | 2000 | 14.5 | 15 | 31×26×18 |
