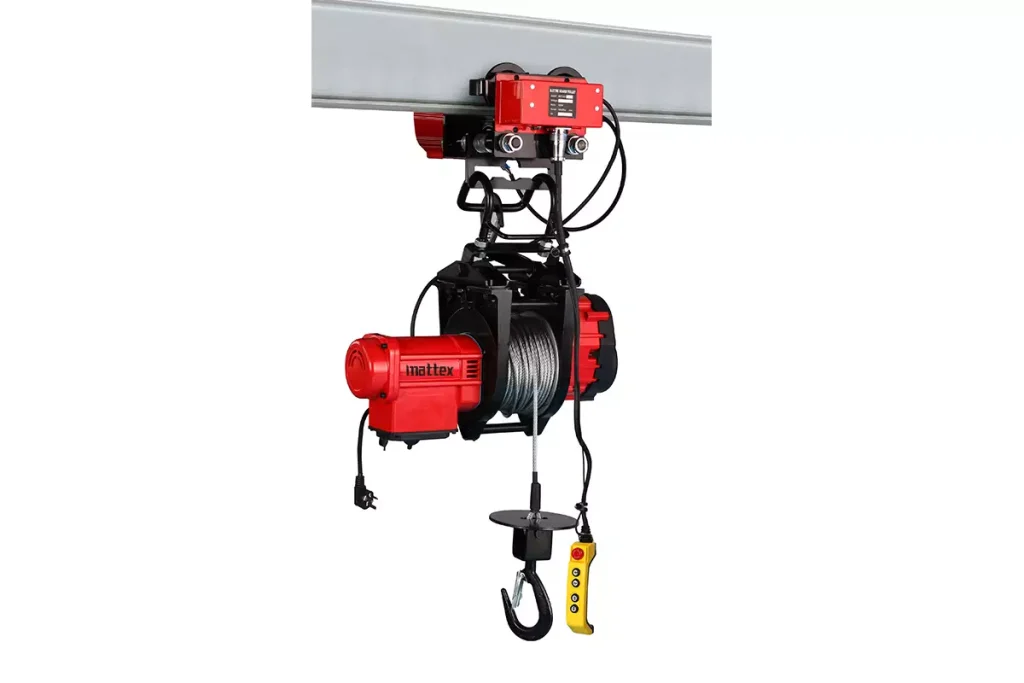

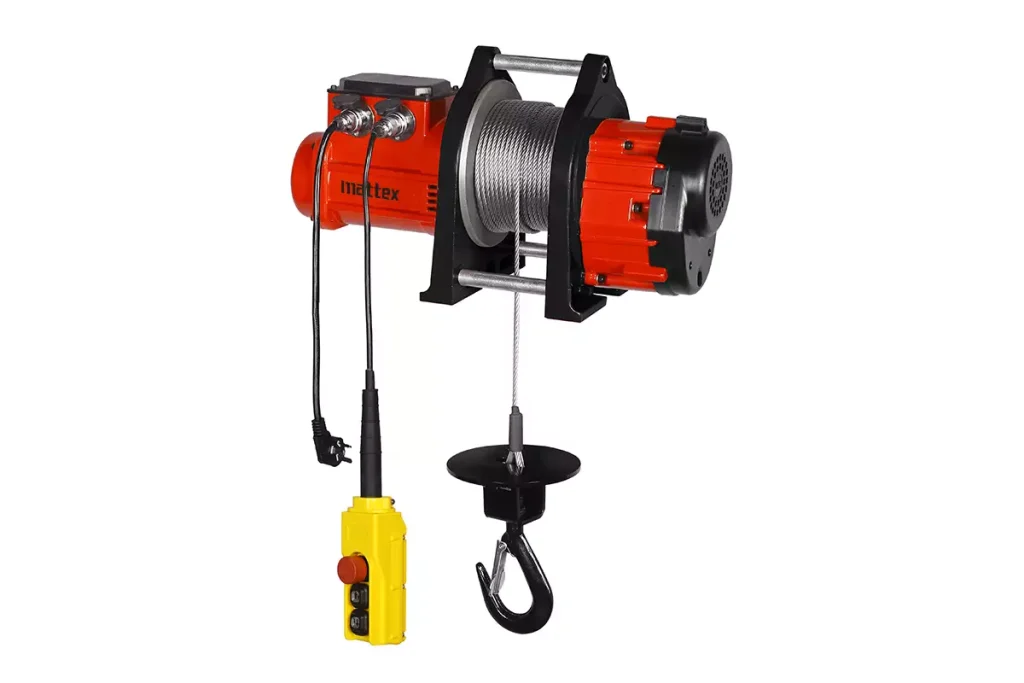

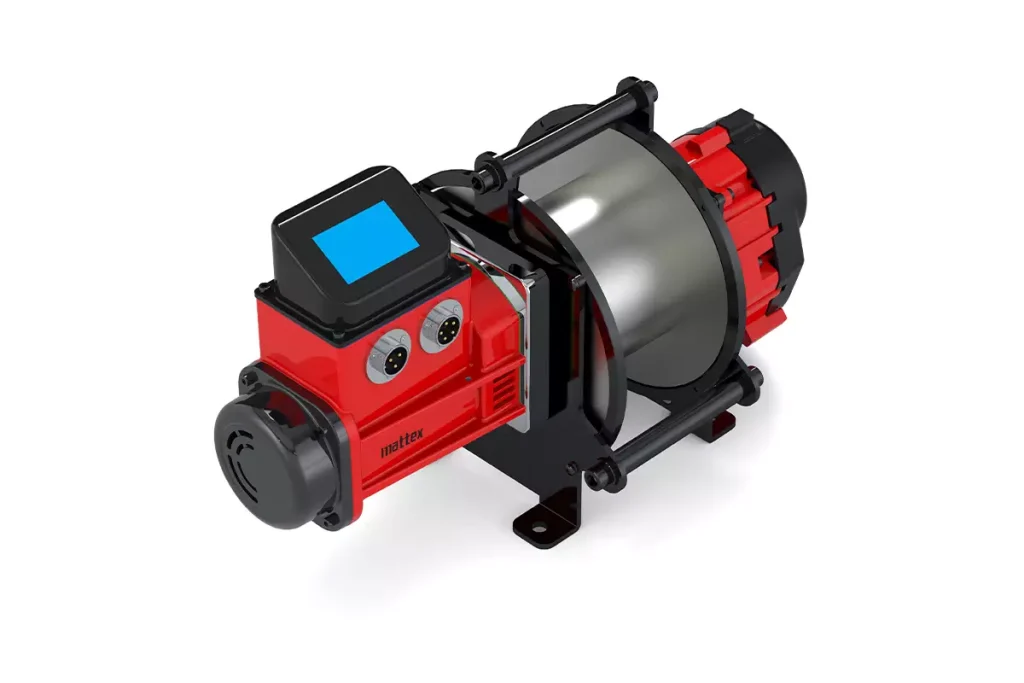

VFF Electric Wire Rope Winch

Share to

Features

Permanent magnet frequency conversion technology, stable lifting and falling without shaking. Intelligent integrated control appliances can save energy by more than 45%. Electrical control 4v low voltage is safe and reliable, no worry about electric shock.
Overload and overheat protection can ensure safe and durable, and high and low speed can be switched at will, which make the machine suitable for different scenarios.
Optional-accurate weight display and real-time monitoring, record keeping for query, wireless control + wireless communication.
Double safety brake device: When the power is off, the motor decelerates instantly and the mechanical ratchet brake take action at the same time.
The switch line and power line are designed separately, which is easy to install.
Small button switch, easy operation
The main unit is small in size and light in weight and can be moved quickly.
Single 100V-240V power supply can be customized for DC12V, 18V, 24V,36V,48V.
The outermost layer of the hoisting rope is the lightest lifting capacity, but fastest in speed.
Using triangle hanging wheel with double wire will increase lifting capacity by 85%, but lifting speed half.

Specification Model	Lifting Capacity (kg)	Variable Frequency Motor power(KW)	Lifting speed (m/min)		Power supply	Lifting height(m)	Wire rope (mmxm)	Power cable length (m)	Control handle cable length(m)	N.W (kg)	G.W (kg)	Package size (cm)
			Low	High
VFF200F-30	200	1.5	8	18	1Phase, 110V/220V, 50Hz/60Hz	28	5*30	4.5	6	18	22	553530
VFF200F-70	200		8	18		68	5*70			23	27	603530
VFF200F-120	200		8	18		118	5*120			29	33	653530
VFF300F-30	300	1.5	6	15		28	6*30			19	23	553530
VFF300F-60	300		6	15		58	6*60			24	28	603530
VFF300F-90	300		6	15		88	6*90			29	33	653530
VFF500-30	500	2.5	7	17		28	7*30			21	25	553530
VFF500-45	500		7	17		43	7*45			24	28	603530
VFF500-60	500		7	17		58	7*60			28	32	653530
VFF200S-30	200	2.5	13	35		28	5*30			18	22	553530
VFF200S-70	200		13	35		68	5*70			23	27	603530
VFF200S-120	200		13	35		118	5*120			29	33	653530
VFF300S-30	300	2.5	10	26		28	6*30			19	23	553530
VFF300S-60	300		10	26		58	6*60			24	28	603530
VFF300S-90	300		10	26		88	6*90			29	33	653530
