Feature
- Adopt urgent stop switch and reinforced breaking switch with position limit.
- Protection class up to IP54.
- With thermal protection device.
TL-MINI Type Electric Wire Rope Hoist
| Model | Usage | Power Supply | Input Power | Capacity | Lifting Speed | Lifting Height | Qty/CTN | Packing Size | G.W/N.W |
| V | W | kg | m/min | m | PCS | mm | kg | ||
| PA200 | Single-Hook | AC220/230/240 50/60HZ | 480 | 100 | 10 | 12 | 2 | 470×370×160 | 24/22 |
| Double-Hook | 200 | 5 | 6 | ||||||
| PA250 | Single-Hook | 540 | 125 | 10 | 12 | ||||
| Double-Hook | 250 | 5 | 6 | ||||||
| PA300 | Single-Hook | 600 | 150 | 10 | 12 | ||||
| Double-Hook | 300 | 5 | 6 | ||||||
| PA400 | Single-Hook | 950 | 200 | 10 | 12 | 520×450×170 | 36/34 | ||
| Double-Hook | 400 | 5 | 6 | ||||||
| PA500 | Single-Hook | 1020 | 250 | 10 | 12 | ||||
| Double-Hook | 500 | 5 | 6 | ||||||
| PA600 | Single-Hook | 1200 | 300 | 8 | 12 | ||||
| Double-Hook | 600 | 4 | 6 | ||||||
| PA700 | Single-Hook | 1250 | 350 | 8 | 12 | 38/36 | |||
| Double-Hook | 750 | 4 | 6 | ||||||
| PA800 | Single-Hook | 1300 | 400 | 8 | 12 | ||||
| Double-Hook | 800 | 4 | 6 | ||||||
| PA1000 | Single-Hook | 1600 | 500 | 8 | 12 | 1 | 560×250×350 | 33/32 | |
| Double-Hook | 1000 | 4 | 6 | ||||||
| PA1200 | Single-Hook | 1800 | 600 | 8 | 12 | ||||
| Double-Hook | 1200 | 4 | 6 |

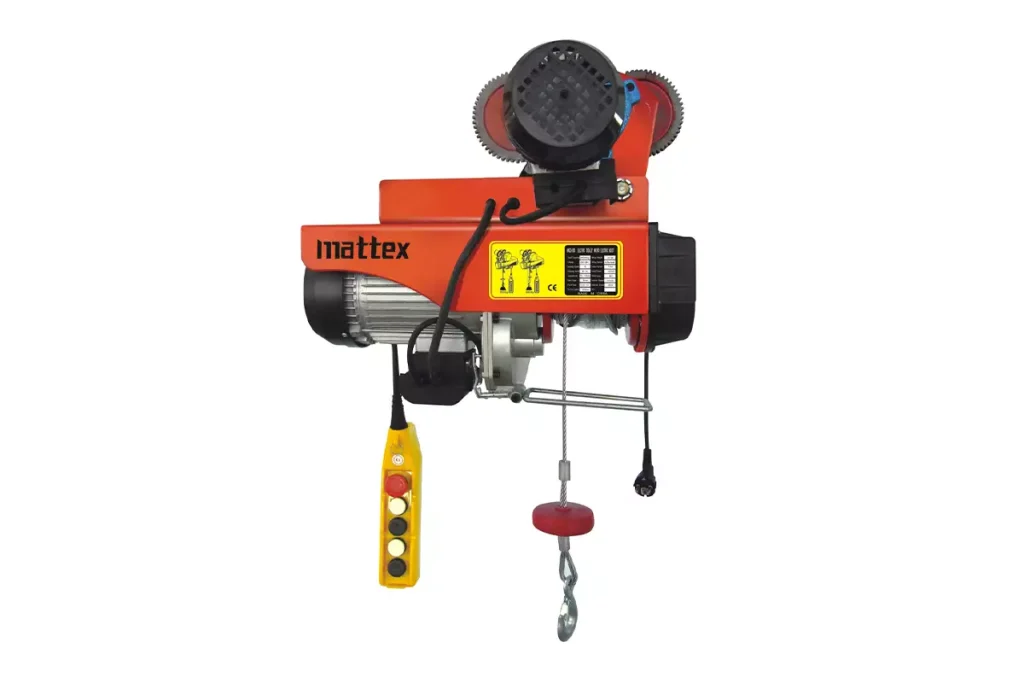

TL-MINI Type Electric Wire Rope Hoist With Trolley
| Model | Usage | Capacity | Power Supply | Lifting Height | Trolley Capacity | Traveling Speed | Qty/CTN | Packing Size | G.W/N.W |
| kg | V | m | ton | m/min | PCS | mm | kg | ||
| HDGD200 | Single-Hook | 100 | AC100/110/ 120/220/ 230/240 50/60HZ | 12 | 0.5 | 13 | 1 | 490×410×470 | 28/26 |
| Double-Hook | 200 | 6 | |||||||
| HDGD250 | Single-Hook | 125 | 12 | ||||||
| Double-Hook | 250 | 6 | |||||||
| HDGD300 | Single-Hook | 150 | 12 | ||||||
| Double-Hook | 300 | 6 | |||||||
| HDGD400 | Single-Hok | 200 | 12 | 35/33 | |||||
| Double-Hook | 400 | 6 | |||||||
| HDGD500 | Single-Hook | 250 | 12 | ||||||
| Double-Hook | 500 | 6 | |||||||
| HDGD600 | Single-Hook | 300 | 12 | 1 | 540×480×480 | ||||
| Double-Hook | 600 | 6 | |||||||
| HDGD700 | Single-Hook | 350 | AC220/230/ 240 50/60HZ | 12 | 38/36 | ||||
| Double-Hook | 700 | 6 | |||||||
| HDGD800 | Single-Hook | 400 | 12 | ||||||
| Double-Hook | 800 | 6 | |||||||
| HDGD1000 | Single-Hook | 500 | 12 | 490×410×470 | 55/53 | ||||
| Double-Hook | 1000 | 6 | |||||||
| HDGD1200 | Single-Hook | 600 | 12 | ||||||
| Double-Hook | 1200 | 6 |
Recommend Products
CD1&MD1 Electric Wire Rope Hoist
Cap.:0.5t-20t
380V Voltage
380V Voltage

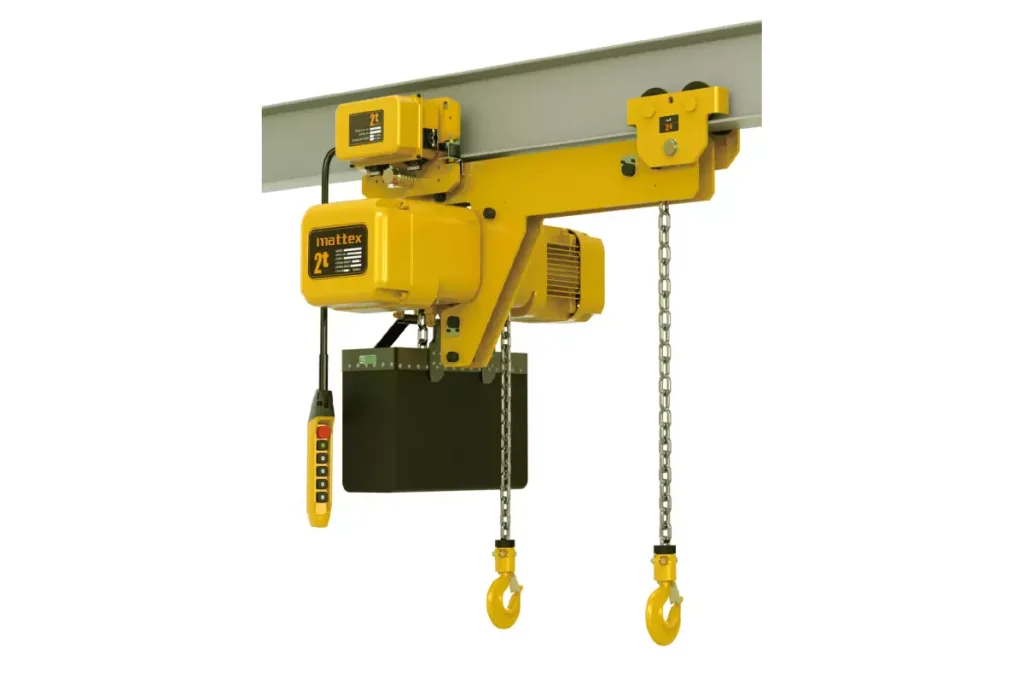

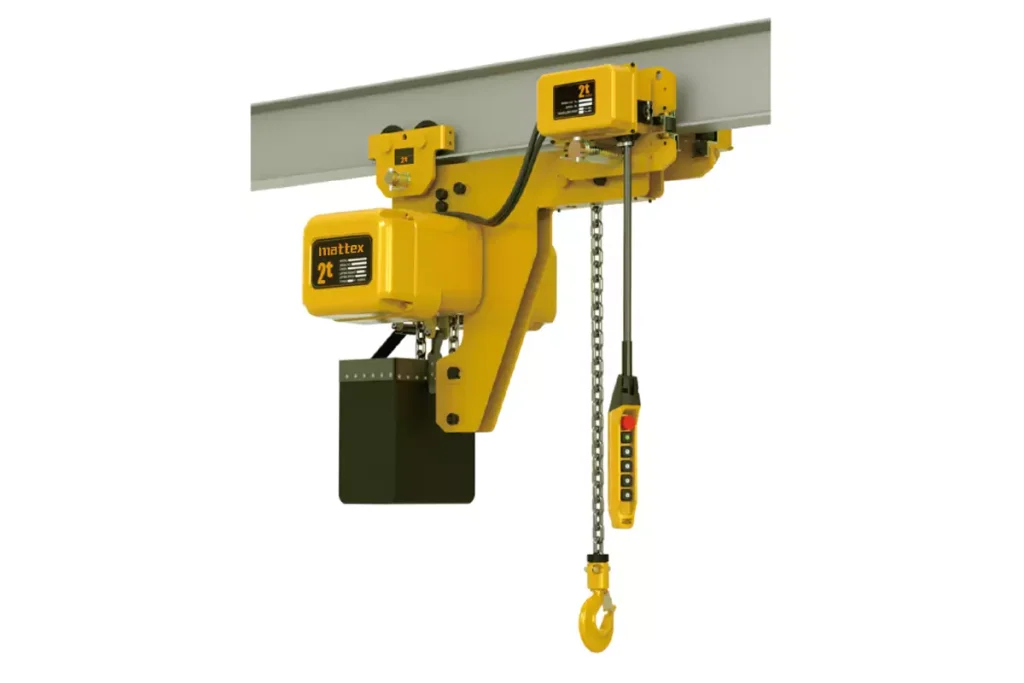

STL Double Speed Type (Low Clearance Type)
