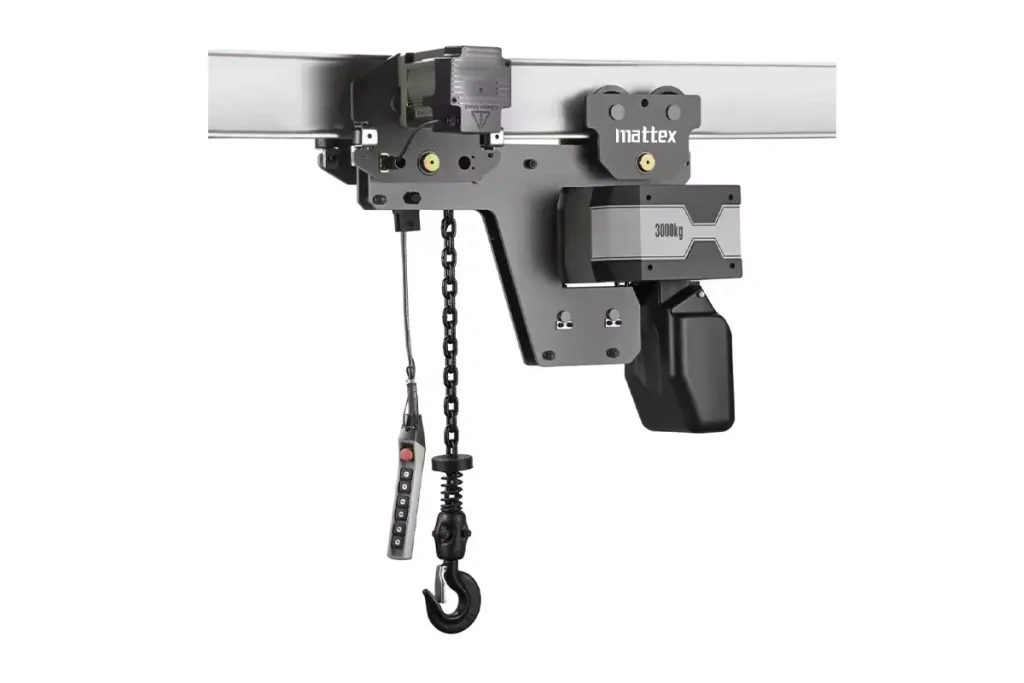

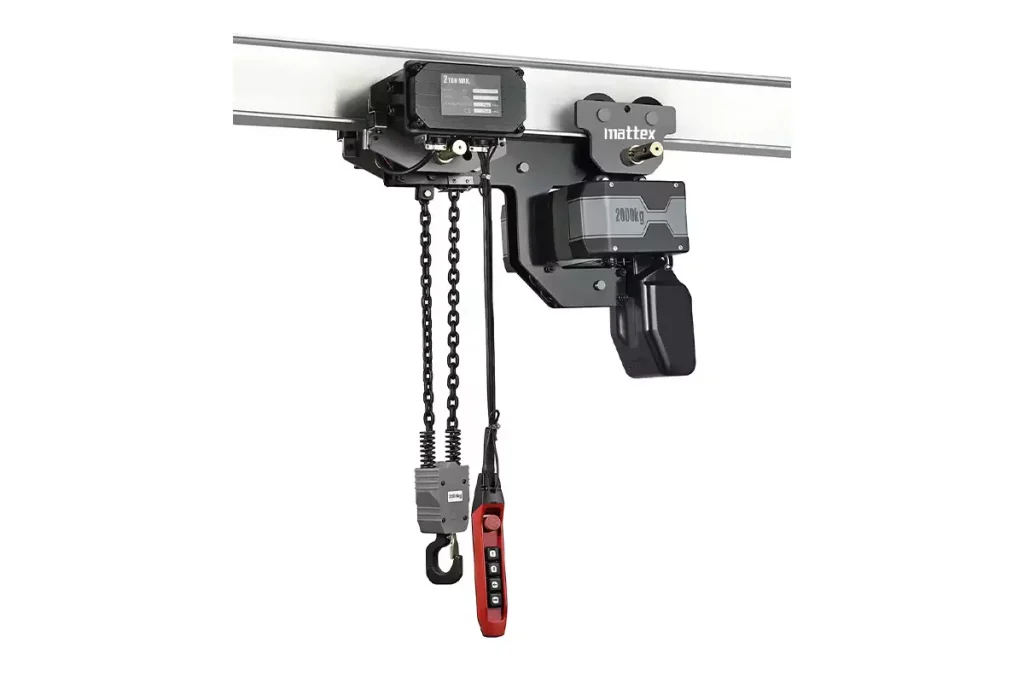

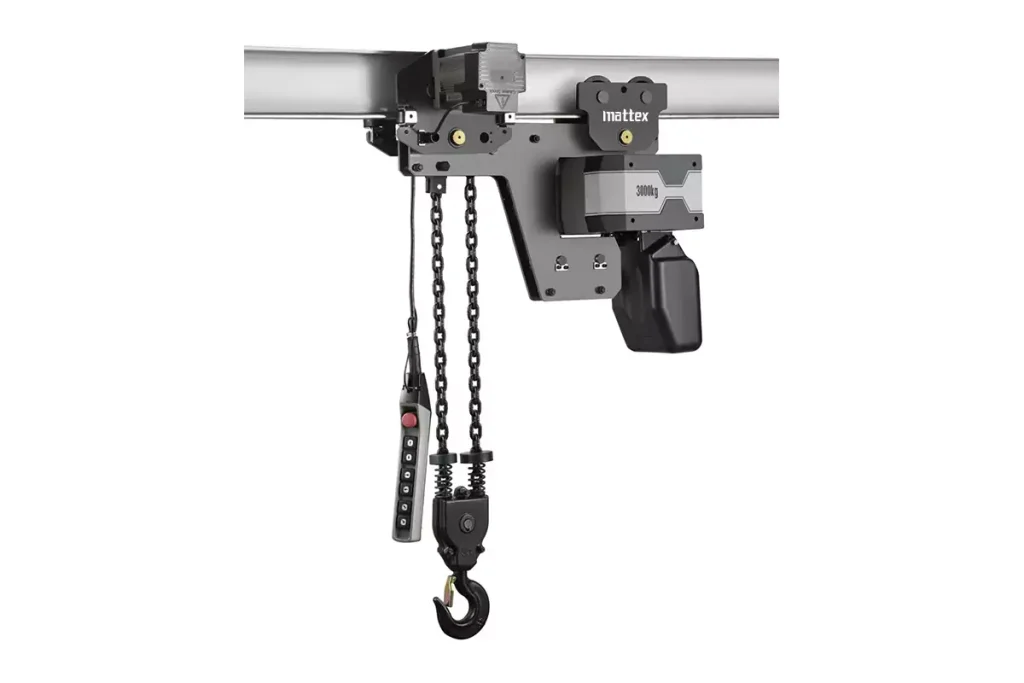

YJ Low Headroom Electric Chain Hoist

Share to

Feature

  • Suitable locations: YJ chain hoists may be employed independently or integrated with monorail cranes, jib cranes and similar equipment for diverse applications including assembly line operations, single-station lifting tasks, and wind turbine maintenance.
  • Structural assembly: The optimised body of the YJ chain hoist, when paired with a highperformance motor, gear reducer and compact electronic control system, maximises the lifting height of loads within confined spaces.
  • Convenient maintenance: The YJ chain hoist ingeniously combines a robust body with a flexible design, enabling swift sprocket replacement without dismantling the entire unit. Inspection of electrical components and brake operation is straightforward and efficient, significantly reducing maintenance time and costs.
  • Voltage range: Selectable input voltage range from 110V to 480V, coupled with a standard 36V safety control voltage (with optional 24V/48V configurations), offers greater flexibility for customers worldwide.

Small Size Specification

ModelCapacityLifting heightLifting speedPowerRPMPhases VoltageControl VoltageRatingTravelling SpeedTravelling Power
(kg)(m)(m/min)(kw)(r/min)(V)(V)(m/min)(kW)
YJ 0.5-01500480.8 14803/2110/48024-48M511/210.75*2
YJ 01-011000441.1 14803/2110/48024-48M511/210.75*2
YJ 01-021000480.8 14803/2110/48024-48M511/210.75*2
YJ 02-012000471.1 14803/2110/48024-48M511/210.75*2
YJ 02-022000442.2 14803/2110/48024-48M511/210.75*2
YJ 03-013000473.0 14803/2110/48024-48M511/210.75*2
YJ 03-02300043.52.2 14803/2110/48024-48M511/210.75*2
YJ 05-02500043.53.0 14803/2110/48024-48M511/210.75*2

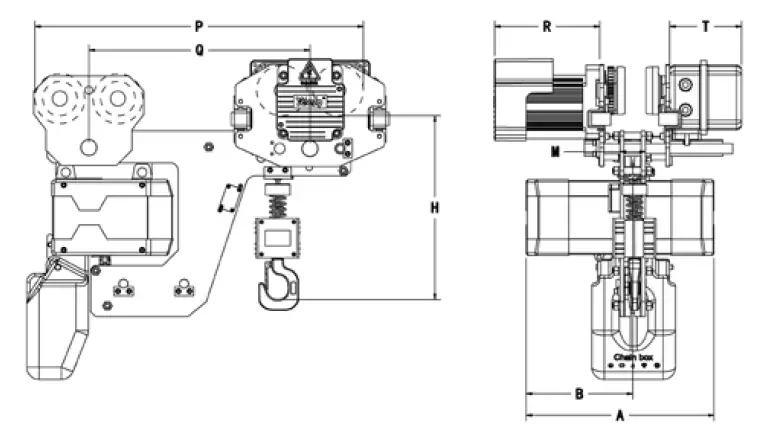

ModelHABPQTRM
YJ 0.5-01365375218645438 210 14250
YJ 01-01385400243645438 210 14258
YJ 01-02440375218645438 210 14250
YJ 02-01485490258730505 230 14264
YJ 02-02480400243646438 230 14258
YJ 03-01530490258785526 230 14272
YJ 03-02600490258762503 230 14264
YJ 05-02635490258835514 230 14272

Large Size Specification

ModelCapacityLifting heightLifting speedPowerRPMPhases VoltageControl VoltageRatingTravelling SpeedTravelling Power
(kg)(m)(m/min)(kw)(r/min)(V)(V)(m/min)(kW)
YJ 10-041000043.53.0*214403/2110/48024-48M511/210.75*2
YJ 15-061500042.253.0*214403/2110/48024-48M511/210.75*2
YJ 20-082000041.753.0*214403/2110/48024-48M511/210.75*2
YJ 25-102500041.43.0*214403/2110/48024-48M511/210.75*2

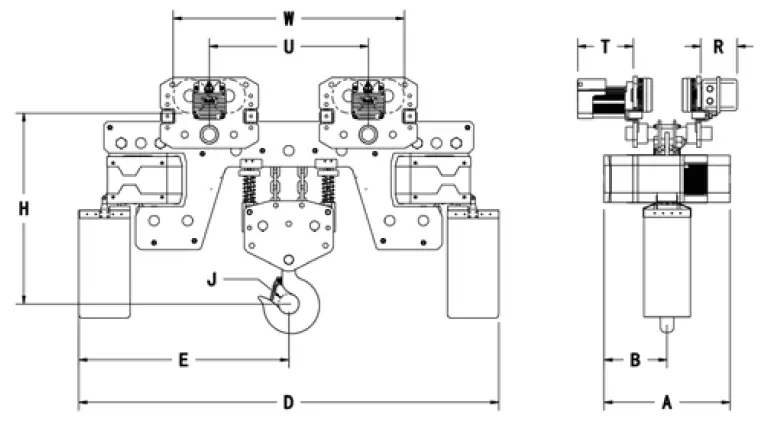

ModelHABDEWUTRJ
YJ 10-04780520260172086094565023014283
YJ 15-0690052026019309651090795230142106
YJ 20-08106052026021201060980616230142118
YJ 25-101230520260231011551170806230142118

  • Small Size Specification
  • Large Size Specification
