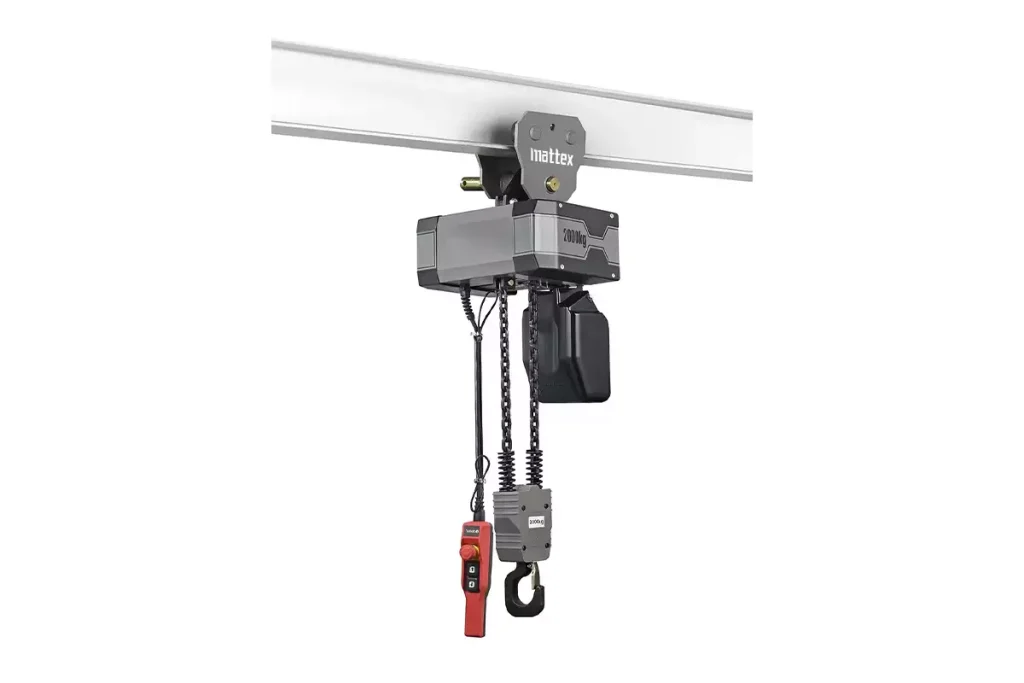

YJ Electric Chain Hoist

Feature

• Suitable locations: YJ chain hoists may be employed independently or integrated with monorail cranes, jib cranes and similar equipment for diverse applications including assembly line operations, single-station lifting tasks, and wind turbine maintenance.
• Structural assembly: The optimised body of the YJ chain hoist, when paired with a highperformance motor, gear reducer and compact electronic control system, maximises the lifting height of loads within confined spaces.
• Convenient maintenance: The YJ chain hoist ingeniously combines a robust body with a flexible design, enabling swift sprocket replacement without dismantling the entire unit. Inspection of electrical components and brake operation is straightforward and efficient, significantly reducing maintenance time and costs.
• Voltage range: Selectable input voltage range from 110V to 480V, coupled with a standard 36V safety control voltage (with optional 24V/48V configurations), offers greater flexibility for customers worldwide.

Small Size Specification

Model	Capacity	Lifting height	Lifting speed	Power	RPM	Phases	Voltage	Control Voltage	Rating	Travelling Speed	Travelling Power
	(kg)	(m)	(m/min)	(kw)	(r/min)		(V)	(V)		(m/min)	(kW)
YJ 0.5-01	500	4	8	0.80	1440	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 01-01	1000	4	4	1.10	1440	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 01-02	1000	4	8	0.80	1440	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 02-01	2000	4	7	1.10	1440	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 02-02	2000	4	4	2.20	1440	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 03-01	3000	4	7	3.00	1440	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 03-02	3000	4	3.5	2.20	1440	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 05-02	5000	4	3.5	3.00	1440	3/2	110/480	24-48	M5	11/21	0.75*2

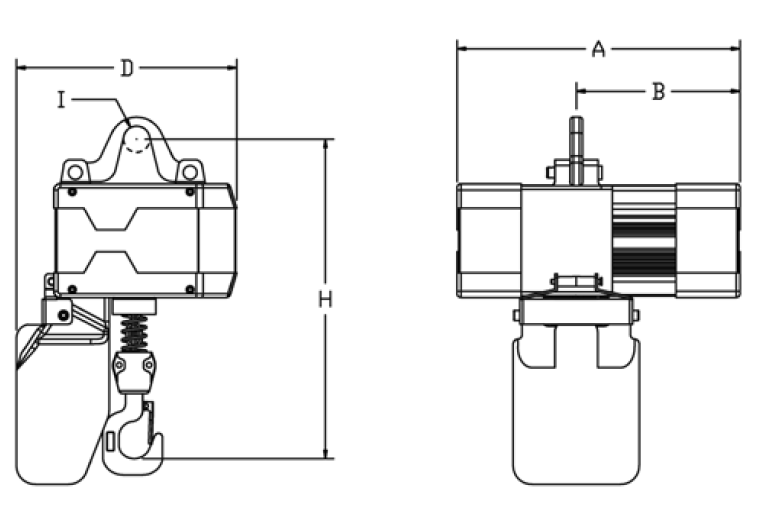

Model	H	A	B	D	I
YJ 0.5-01	420	375	218	275	Φ31
YJ 01-01	440	400	243	290	Φ31
YJ 01-02	510	375	218	275	Φ31
YJ 02-01	575	490	258	425	Φ36
YJ 02-02	560	400	243	290	Φ36
YJ 03-01	625	490	258	425	Φ43
YJ 03-02	680	490	258	425	Φ43
YJ 05-02	735	490	258	425	Φ54

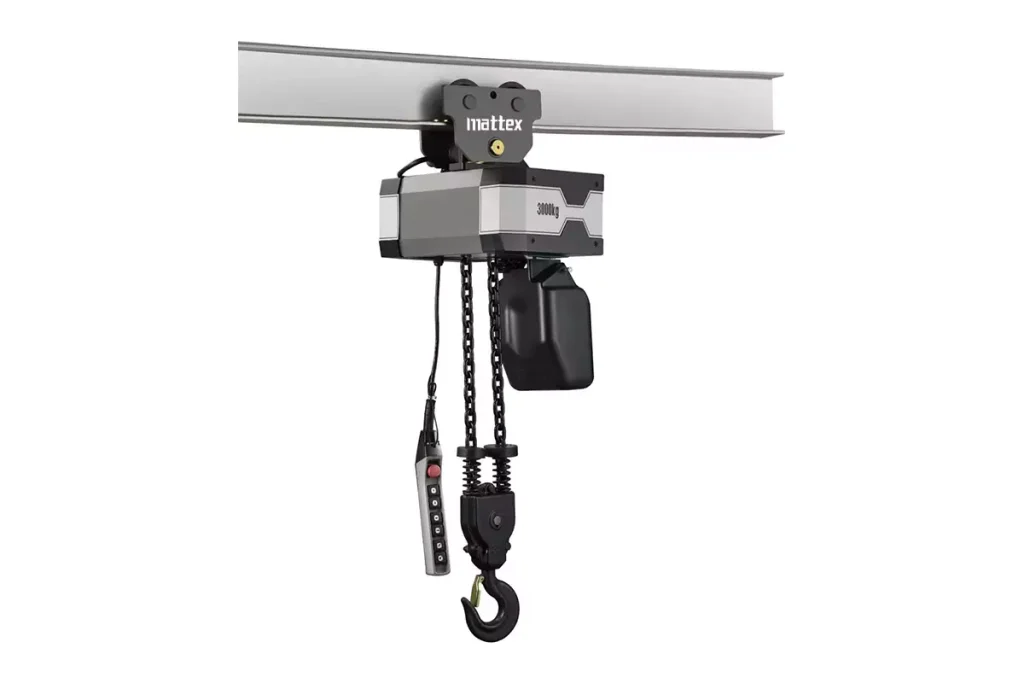

Large Size Specification

Model	Capacity	Lifting height	Lifting speed	Power	RPM	Phases	Voltage	Control Voltage	Rating	Travelling Speed	Travelling Power
	(kg)	(m)	(m/min)	(kw)	(r/min)		(V)	(V)		(m/min)	(kW)
YJ 10-04	10000	4	3.5	3.0*2	1440	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 15-06	15000	4	2.25	3.0*2	1440	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 20-08	20000	4	1.75	3.0*2	1440	3/2	110/480	24-48	M5	11/21	0.75*2
YJ 25-10	25000	4	1.4	3.0*2	1440	3/2	110/480	24-48	M5	11/21	0.75*2

Model	H	A	B	D	E	J
YJ 10-04	1190	520	260	1160	580	Φ83
YJ 15-06	1310	520	260	1350	675	Φ106
YJ 20-08	1470	520	260	1540	770	Φ118
YJ 25-10	1640	520	260	1730	865	Φ142
