Features

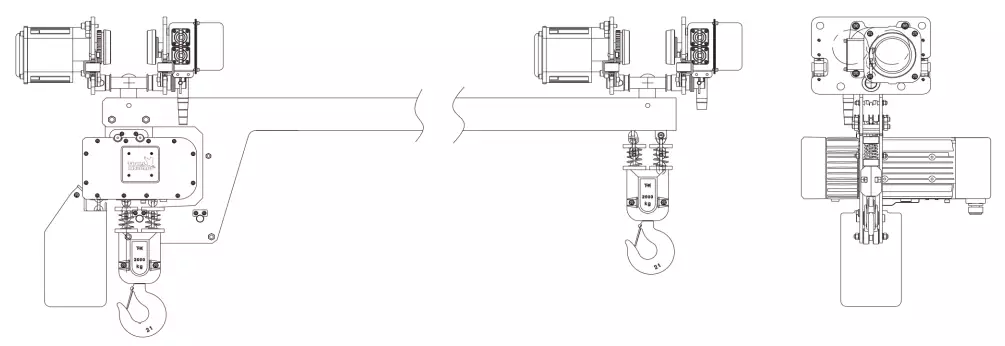

STL double hook electric chain hoist is a non-standard design that requires two lifting points to lift the same long workpiece at the same time. The two pieces of load chain are driven synchronously by a single lifting motor, and the distance between the double hooks is adjusted to meet different applications. This design fully guarantees the simultaneous lifting of the two hooks, lifting and transporting the cargo without dangerous tilting. Its low headroom design is suitable for using in low plant buildings and can achieve great hook travel. According to the requirements of use or space, there are different types of STL double hook electric chain hoist options, which are divided into two hooks located on both sides of the hoist or on the same side. For the fixed hoist STL double hook electric chain hoist, the hook distance can be adjusted according to the width of the load, and it is connected with the steel structure in a rigid fixed way.
STL double hook electric chain hoist with electric trolley can be moved back and forth. STL double hook electric chain hoist can be electrically adjusted hook spacing for lifting, transporting and precise positioning of workpieces of different lengths. Even if the load length is different or the two hooks are in the off-load situation, it can still ensure the smooth operation of the two hooks and fully synchronized lifting.
- Low space requirements,can achieve a great lifting height.The two hooks of a hoist are lifed in perfect sync
- Even if the load is uneven, it can ensure that the synchronous lifting load will not tilt. It is suitable for handling various workpieces of different lengths
- Low maintenance requirements, the trolley has no flange, not affect the smooth operation of lifting and moving
- Optional frequency changer Magnetek radio remote control, optional explosion-proof design for continuous electronic monitoring of suspended loads
- Complies with ATEXand IECEX, NEC, CEC, INMETRO and TC RUapprovals
Specification
| Model | Rated capacity(ton) | Lifting speed(m/min) | Motor power(kw) | Rotate speed | Motor insulation grade | Working voltage | Control voltage | No.of load chain | Chain size(mm) |
| STL0.25-01DH | 0.25t | 8/2 | 0.8/0.2 | 2880/720 r/min | F grade | 3-Phase 380V 50Hz | 24V/36V/ 48V | 1 | 5×15 |
| STL0.5-01DH | 0.5t | 8/2 | 0.8/0.2 | 0 | 5×15 | ||||
| STL01-01DH | 1t | 8/2 | 1.6/0.4 | 1 | 7×21 | ||||
| STL01-02DH | 1t | 4/1 | 0.8/0.2 | 1 | 5×15 | ||||
| STL1.6-01DH | 1.6t | 8/2 | 3.6/0.9 | 1 | 9×27 | ||||
| STL02-02DH | 2t | 4/1 | 1.6/0.4 | 2 | 7×21 | ||||
| STL2.5-01DH | 2.5t | 8/2 | 3.6/0.9 | 1 | 11×33 | ||||
| STL03-02DH | 3.2t | 4/1 | 3.6/0.9 | 2 | 9×27 | ||||
| STL05-02DH | 5t | 4/1 | 3.6/0.9 | 2 | 11×33 |
| Trolley motor (single speed) | Trolley motor (variable frequency) | ||||||||||
| Power(Kw) | Rotate speed(r/min) | Moving speed(m/min) | Turning radius(m) | I-beam width(mm) | Wheel diameter(mm) | Power (Kw) | Rotate speed(r/min) | Moving speed(m/min) | Turning radius(m) | I-beam width(mm) | Wheel diameter(mm) |
| 0.4 | 1440 | 11 or 19 | 0.7 | 75-178 | 95 | 0.4 | 1440 | 2-11 or 3- 19 | 0.7 | 75-178 | 95 |
| 0.4 | 0.7 | 75-178 | 95 | 0.4 | 0.7 | 75-178 | 95 | ||||
| 0.4 | 0.8 | 75-178 | 95 | 0.4 | 0.8 | 75-178 | 95 | ||||
| 0.4 | 0.8 | 82-178 | 110 | 0.4 | 0.8 | 82-178 | 110 | ||||
| 0.4 | 0.9 | 82-178 | 110 | 0.4 | 0.9 | 82-178 | 110 | ||||
| 0.4 | 0.9 | 82-178 | 110 | 0.4 | 0.9 | 82-178 | 110 | ||||
| 0.4 | 1 | 100-178 | 125 | 0.4 | 1 | 100-178 | 125 | ||||
| 0.75 | 1 | 100-178 | 125 | 0.75 | 1 | 100-178 | 125 | ||||
| 0.75 | 1.8 | 112-178 | 140 | 0.75 | 1.8 | 112-178 | 140 | ||||
