EX-C Spark Proof Chain Block

Share to

Features

The product complies with the EU’s explosion-proof standard
ATEX2014/34/EU and the Machinery Directive 2006/42/EC.
The company has passed ISO9001,CE/GS,ATEX,CCS and other related certifications.
The product explosion-proof level can reach: Ex II 2GD c IC TA IIIC T135°C.
Suitable for: potential explosive atmospheres or dusty environments.
Area: Zone 182(gas), Zone 21&22(dust).
The whole product is equipped with anti spark coating, and the brake device is completely protected to prevent foreign matter from entering.
Overload limiter, special marine storage chain bag, stainless steel lifting chain are optional.
Note: It is the responsibility of the user to determine the type of explosion protection area.

Model		EX0050-C	EX0100-C	EX0150-C	EX0200-C	EX-0300-C	EX0500-C	EX1000-C	EX1500-C	EX2000-C	EX3000-C
Capacity(Tons)		0.5	1	1.5	2	3	5	10	15	20	30
Lifting height(m)		2.5	2.5	2.5	2.5	3	3	3	3	3	3
Test load((KN)		6.3	12.5	18.8	25	37.5	62.5	125	187.5	250	375
Stands of load chain		1	1	1	1	1	2	4	6	8	22
Load chain diameter (mm)		5×15	6×18	7×21	8×24	10×30	10×30	10×30	10×30	10×30	10×30
Hand chain (mm)		5×23.7
Force(N)		240	250	265	310	372	380	385	385	390×2	390×2
Net weight(kg)		9.3	12.2	16.5	19.5	32	43	80.7	140	180	350
Extra weight per meter of extra lift (kg)		1.41	1.67	1.97	2.27	2.95	5.27	9.67	14.07	19.34	28.14

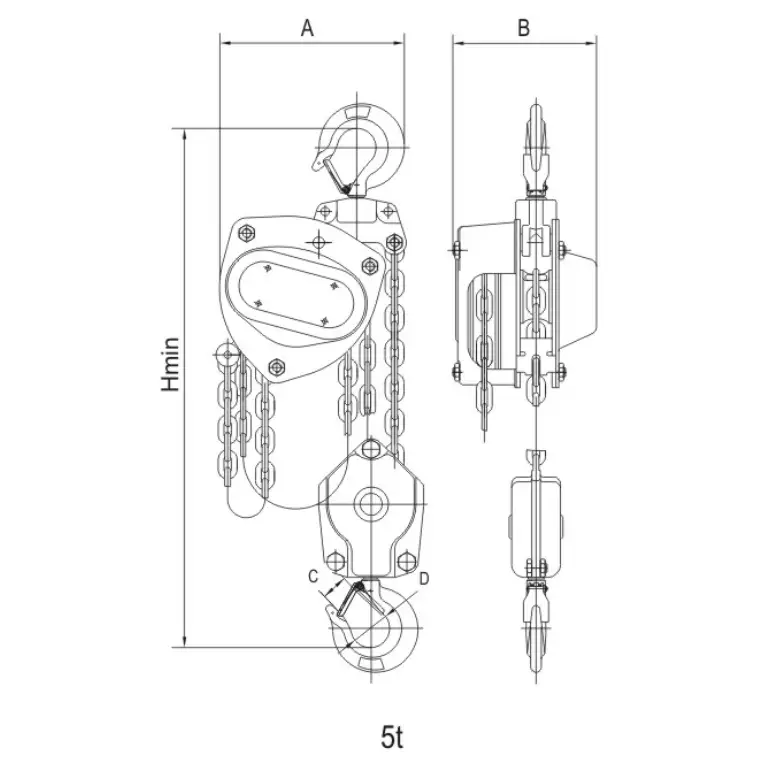

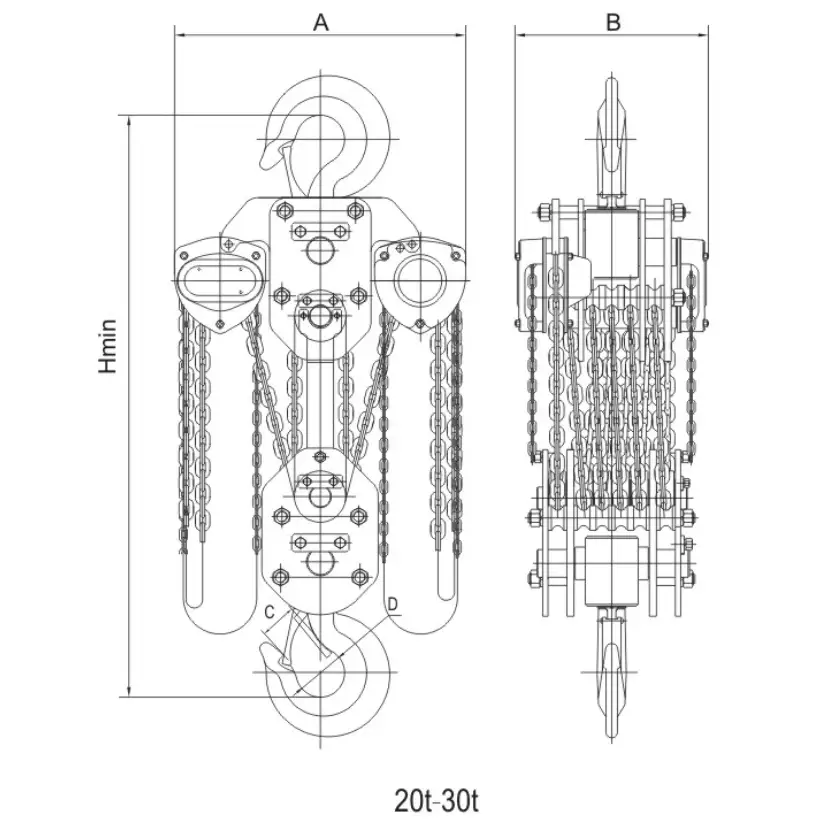

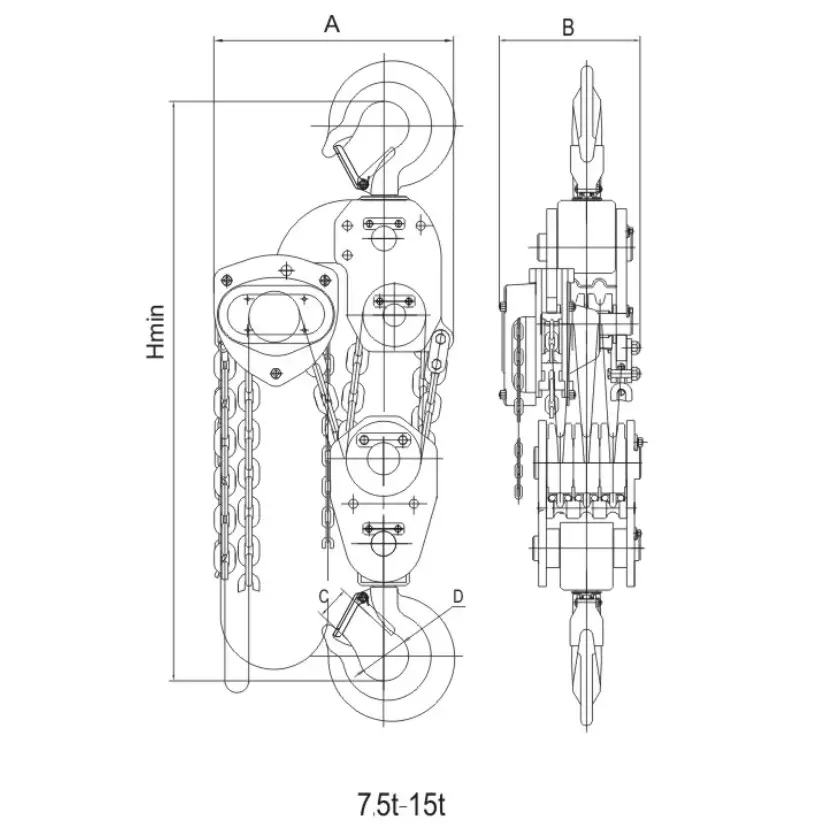

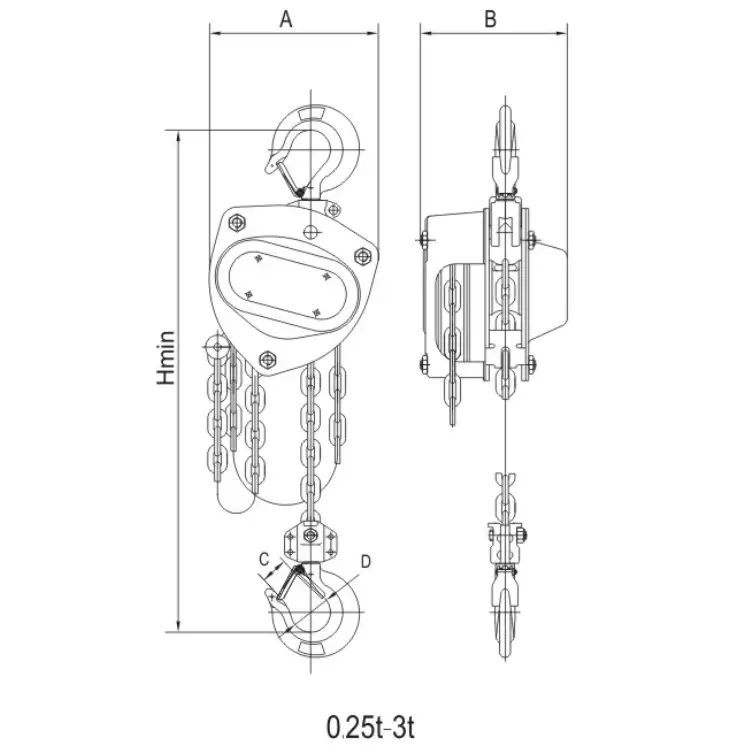

Dimensions (mm)	A	148	172	196	210	255	280	385	405	640	705
	B	132	151	173	175	205	189	189	242	226	454
	C	23	26	29.5	34	39	41	50	67	80	80
	D	35	40	45	50	55	65	85	96	110	110
	H min	345	376	442	470	580	690	780	920	980	1280
