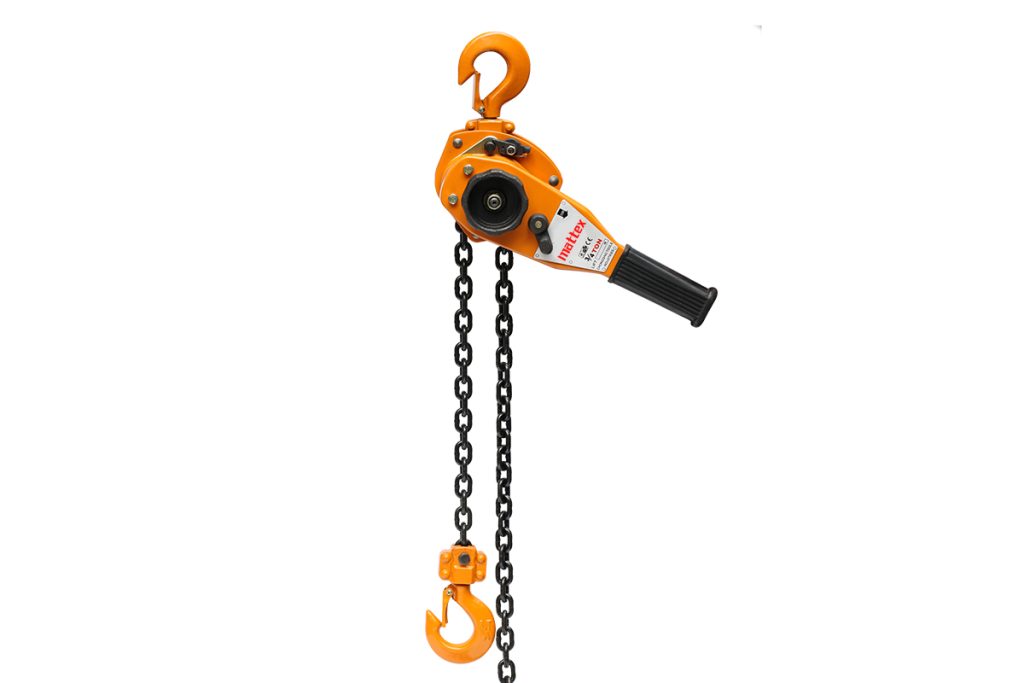

V Type Lever Block

Share to

Features

V type manual lever block produced by our company is a new kind of product which is ameliorated on the basis of introducing the advanced technology from primary goods. It has such distinct merits as small cubage, light weight, beautiful appearance, small manual force, safety and reliability, and long operational ifespan. It is especially used in occasion without power source such as shipbuilding, post fice, mines, electric power, and transportation units in heavy goods suspending, equipment fixing, mechanism traction, and aerial exercise.

Standard Features: Reasonable compact structure, smooth operation, pretty appearance

  • Low-alloy structure steel plate, High-strength, safety and durable
  • G80 high tension load chain
  • Dual pawl braking system keep safety and reliable
  • Open frame design provides access for easy cleaning and inspection
  • Rubber grip handle for a better comfortable operation
  • Unique clutch and spline gear design enhance the safe.

Optional Features

  • Overload Protection System
  • Zinc Plated Load Chain
  • Casting Latches
  • Casting Enlarged End Ring

Specifications

Capacity(ton)0.7511.52369
Standard lifting height(m)1.51.51.5151.51.51.5
Running test load (KN)111522.53037.575112.5
Effort required to lift rated load(N)145150200220280310320
Strands of load chain1111123
Diameter of load chain(mm)667.18101010
Net weight(kg)7710121828.545
Extra weight per meter of extra lit(kg)0.80.81.11.42.24.46.6
