Features
- Compact Design, SmallBody, Low Headroom-Wide Usage
- High Precision CNC Gears
- Impact Resistance Gear Cover
- Double Pawl Brake System Enforced Pawl Ratchet Disc &Brake Disc
- Dust Cover on Brake System
- High Precision 4 Caged Bearing Power Transmission
- Engineering Optimized Hand Chain Wheel Groove and Cover-Preventing Hand Chain Stack in Fast Operation
- High Precision Double CNC Load Chain Guides
- Zinc Plated Stay Bolts, Side Plates &Load Chain Guides
- Super Robust-Much Higher than 1500 cycles EN 13157 Endurance Testing
Other Standard Setting
- ISO 16872 Standard V(100)Load Chain
- ISO 16877 Grade T(80)Load Chain
- Zinc Plated Hand Chain
- Zinc Plated Load Chain
- Zinc Plated Cast Safety Latch
Optional Setting
- Over Load Protection
- Fused Brake Disc
- DOCROMET Treatment Important Parts
- Thrust Bearings on Bottom Hook
Specifications
| Capacity | ton | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 |
| Lifting height | m | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Test load | ton | 6.3 | 12.5 | 20 | 25 | 40 | 62.5 | 125 | 250 |
| Pull to rated load | N | 262 | 265 | 265 | 272 | 280 | 358 | 370 | 370×2 |
| No.of load chain | mm | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 |
| Dia.of load chain | mm | 6 | 6 | 7.1 | 8 | 7.1 | 10 | 10 | 10 |

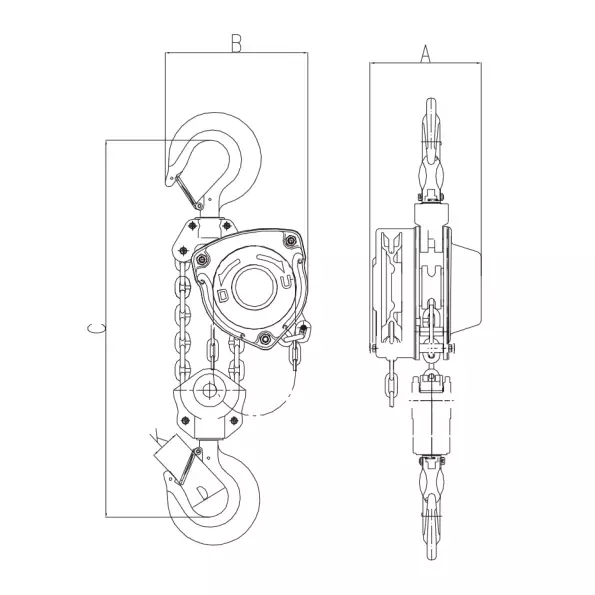

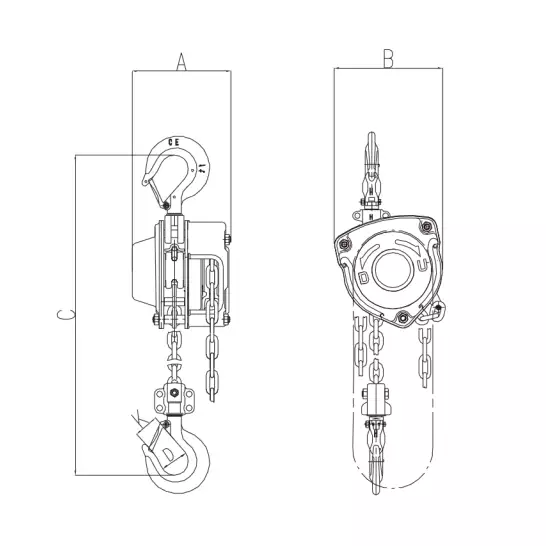

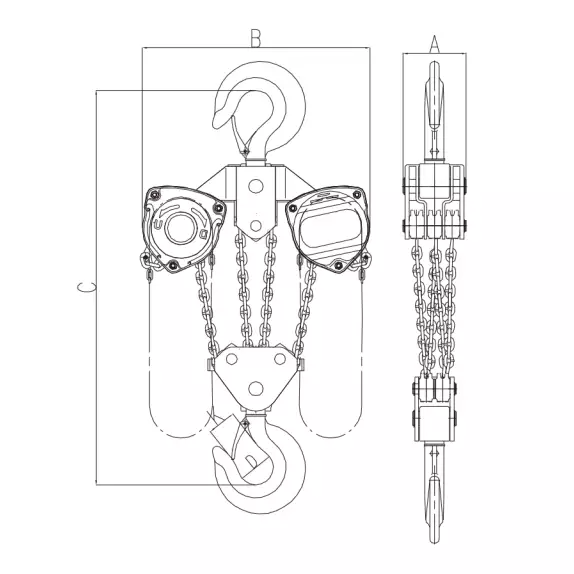

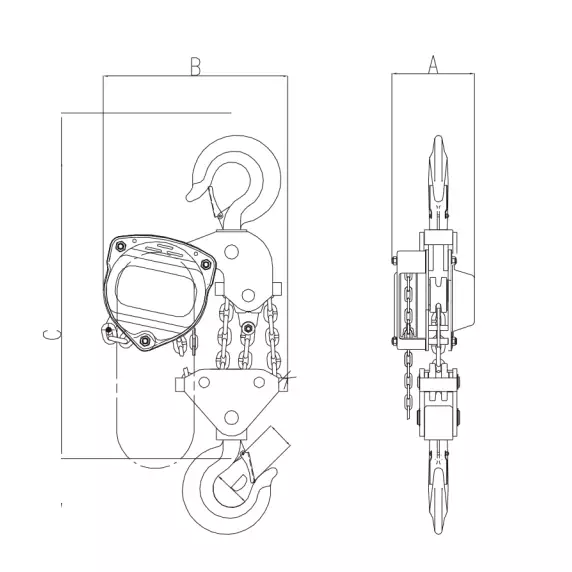

| Dimensions(mm) | A | 126.5 | 143 | 148 | 152 | 156 | 181 | 181 | 192 |
| B | 136 | 156 | 182 | 198 | 214 | 266 | 365 | 630 | |
| C | 266 | 324 | 392 | 407 | 465 | 636 | 798 | 890 | |
| D | 36 | 40 | 52 | 52 | 60 | 68 | 85 | 106 | |
| K | 25.5 | 28 | 38 | 38 | 42 | 50 | 57 | 84 | |
| Net weight | kg | 9.2 | 11.0 | 15.6 | 18.5 | 23 | 41.2 | 76.8 | 163.2 |
