ST-C Stainless Steel Chain Block

Share to

Features

The main components are made of all stainless steel,which has strong anti fouling, anti corrosion and anti-wear properties.
The surface of the product is smooth and compact,not easy to be dusty and has good self-cleaning properties.
The hoist is easy to maintain,as it gets scratches or rust in daily use.
It is widely used in food,chemical,biological,marine and other places with corrosive factors and high cleanliness requirements.
Note: It is the responsibility of the user to tell in which corrosive environment the product is used.

Model		ST-100C	ST-150C	ST-200C1	ST-200C2	ST-300C	ST-500C
Capacity(Tons)		1	1.5	2	2	3	5
Lifting height(m)		2.5	2.5	2.5	2.5	3	3
Test load((KN)		12.5	18.8	25	25	37.5	62.5
Stands of load chain		1	1	1	2	2	3
Load chain diameter (mm)		7×21	9×27	10×30	7×21	9×27	9×27
Hand chain (mm)		5×23.3
Force(N)		304	265	310	335	343	270
Net weight(kg)		13	16.5	24.5	19.5	31.5	60
Extra weight per meter of extra lift (kg)		1.97	2.61	3.1	3.1	4.37	7.3

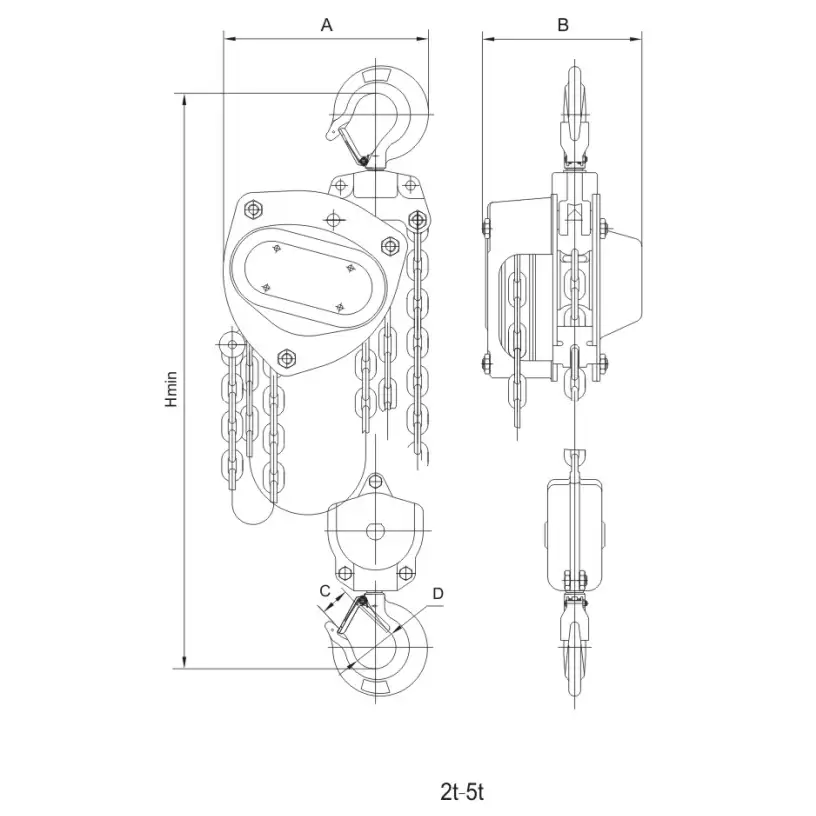

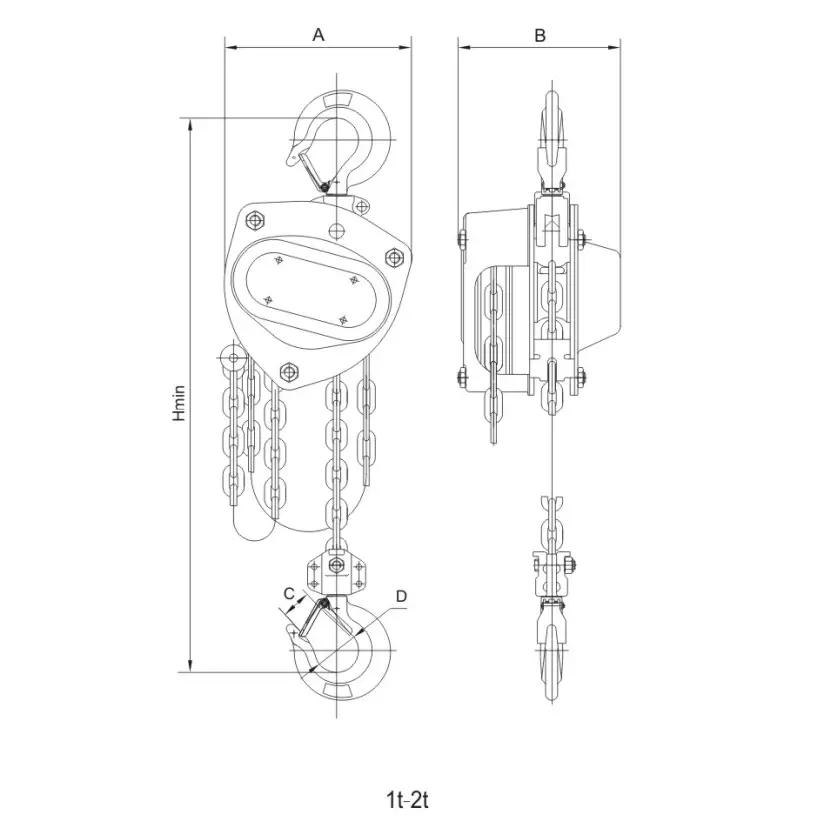

Dimensions (mm)	A	172	196	223	192	230	365
	B	151	173	189	151	173	189
	C	26	29.5	39	34	39	41
	D	40	45	55	50	55	65
	H min	376	442	520	425	565	710
