Features
- Compact Design, Low Headroom-Wide Usage
- High Precision CNC Gears
- Impact Resistance Gear Cover
- High Endurance Rllers on Load Sprocket
- Double Pawl Brake System
- Dust Cover on Brake System
- Engineering Optimized Hand Chain Wheel Cover-Preventing Hand Chain Stack in Fast Operation
- High Precision Double CNC Load Chain Guides
- Zinc Plated Stay Bolts, Side Plates&Load Chain Guides
- Robust-Higher than 1500 cycles EN 13157 Endurance Testing
Other Standard Setting
- ISO 16872 Standard V(100) Load Chain
- ISO 16877 Grade T(80) Load Chain
- Zinc Plated Hand Chain
- Black Tempered Load Chain
- Zinc Plated Steel Safety Latch
Optional Setting
- Over Load Protection
- High Precision Caged Roller Bearings
- Thrust Bearings on Bottom Hook
- Zinc Plated Load Chain
- Zinc Plated Cast Safety Latch
Specifications
| Capacity | ton | 0.25 | 1 | 1.5 | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 | 30 |
| Lifing height | m | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Test load | ton | 0.375 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 11.25 | 15 | 22.5 | 30 | 45 |
| Pull to rated load | N | 235 | 250 | 265 | 335 | 372 | 380 | 380 | 380 | 385 | 400×2 | 420×2 |
| No.of load chain | mm | 1 | 1 | 1 | 1 | 1 | 2 | 3 | 4 | 6 | 8 | 12 |
| Dia.of load chain | mm | 4 | 6 | 7 | 8 | 10 | 9 | 10 | 10 | 10 | 10 | 10 |

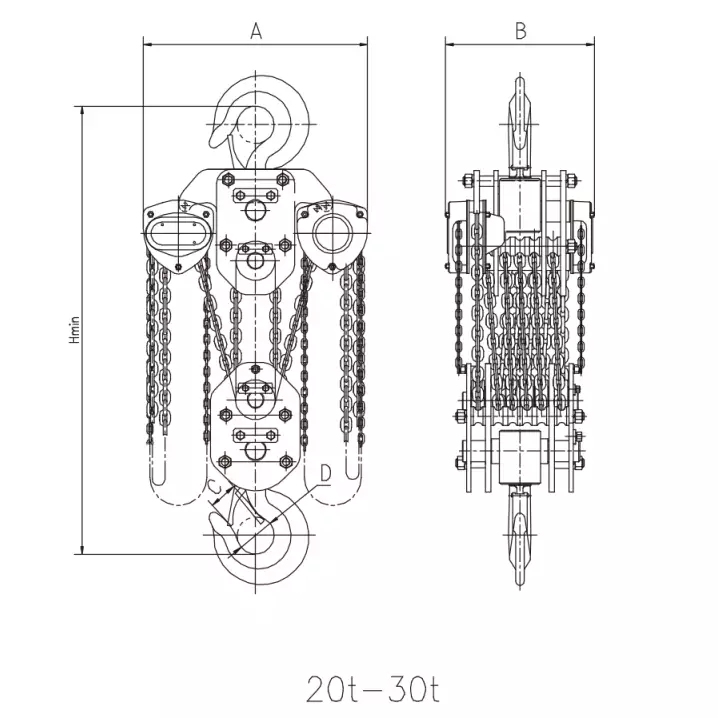

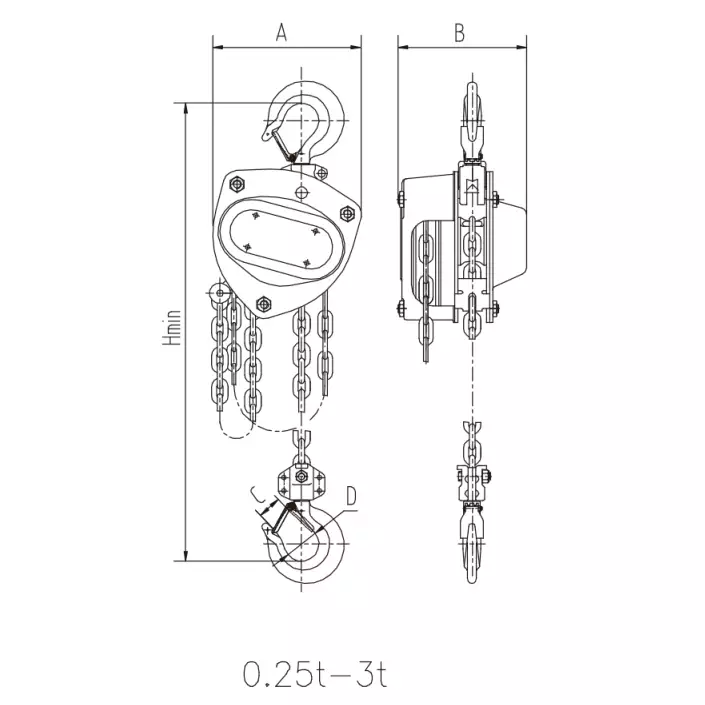

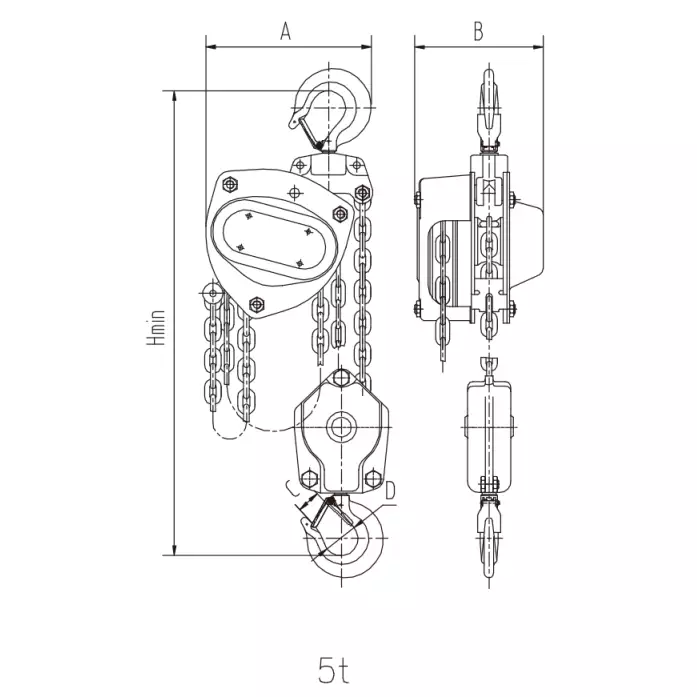

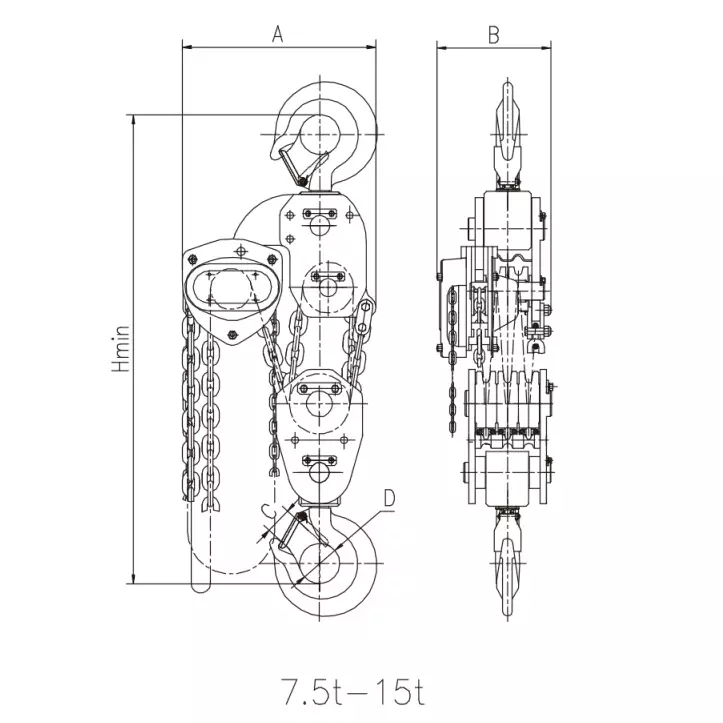

| Dimensions(mm) | A | 121 | 172 | 196 | 210 | 255 | 280 | 365 | 463 | 540 | 630 | 705 |
| B | 114 | 151 | 173 | 175 | 205 | 189 | 189 | 189 | 220 | 200 | 510 | |
| C | 19 | 26 | 29.5 | 34 | 37.5 | 41 | 50 | 50 | 80 | 80 | 80 | |
| D | 31 | 40 | 45 | 50 | 55 | 65 | 85 | 85 | 110 | 110 | 110 | |
| Hmin | 280 | 376 | 442 | 470 | 530 | 630 | 760 | 830 | 980 | 1000 | 1400 | |
| Net weight | kg | 4.4 | 10.5 | 17 | 18 | 22 | 40 | 52 | 70 | 125 | 162 | 228 |
